Key Features:
- Designed to house P.C. boards or equipment.
- Easy wall mounting or shelf mounting with two removable flanges
- Sized for standard eurocard P.C. boards.
- P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
- Two piece body - with easily removable belly plate for easy access to top interior of enclosure.
- Extruded body & aluminum endplates with a choice of either clear or black anodized finish.
- Includes eight (8) assembly screws - either clear or black assembly screws to match enclosure panels & body. NOTE: Recommended screw torque is 5 lbf.in (56.5 cN.m).
- For black replacement screws (quantity 100) order part number 1455MS100BK
- For clear replacement screws (quantity 100) order part number 1455MS100
- For technical information, please refer to documentation under "Product Resources."
Photo Features:

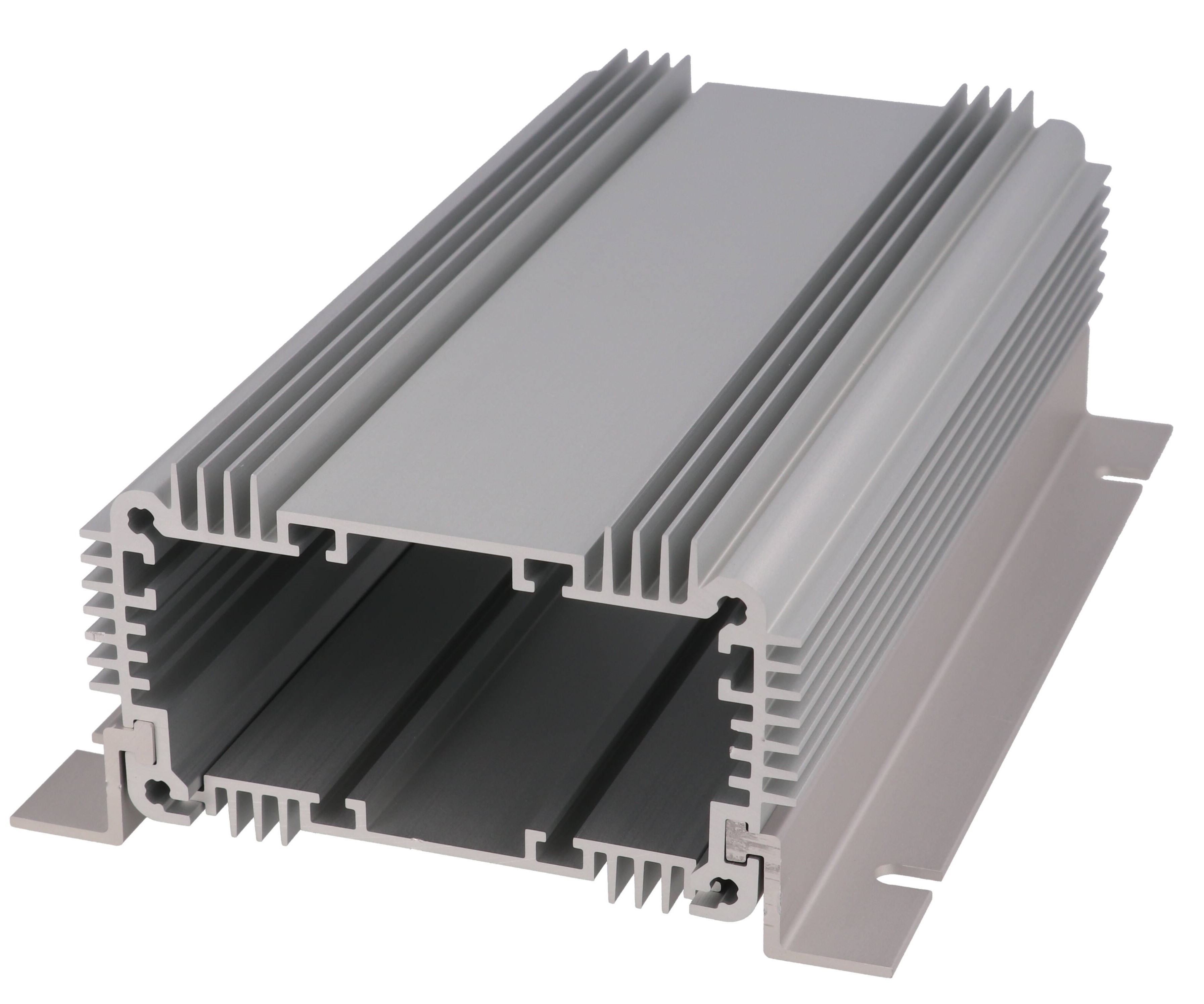

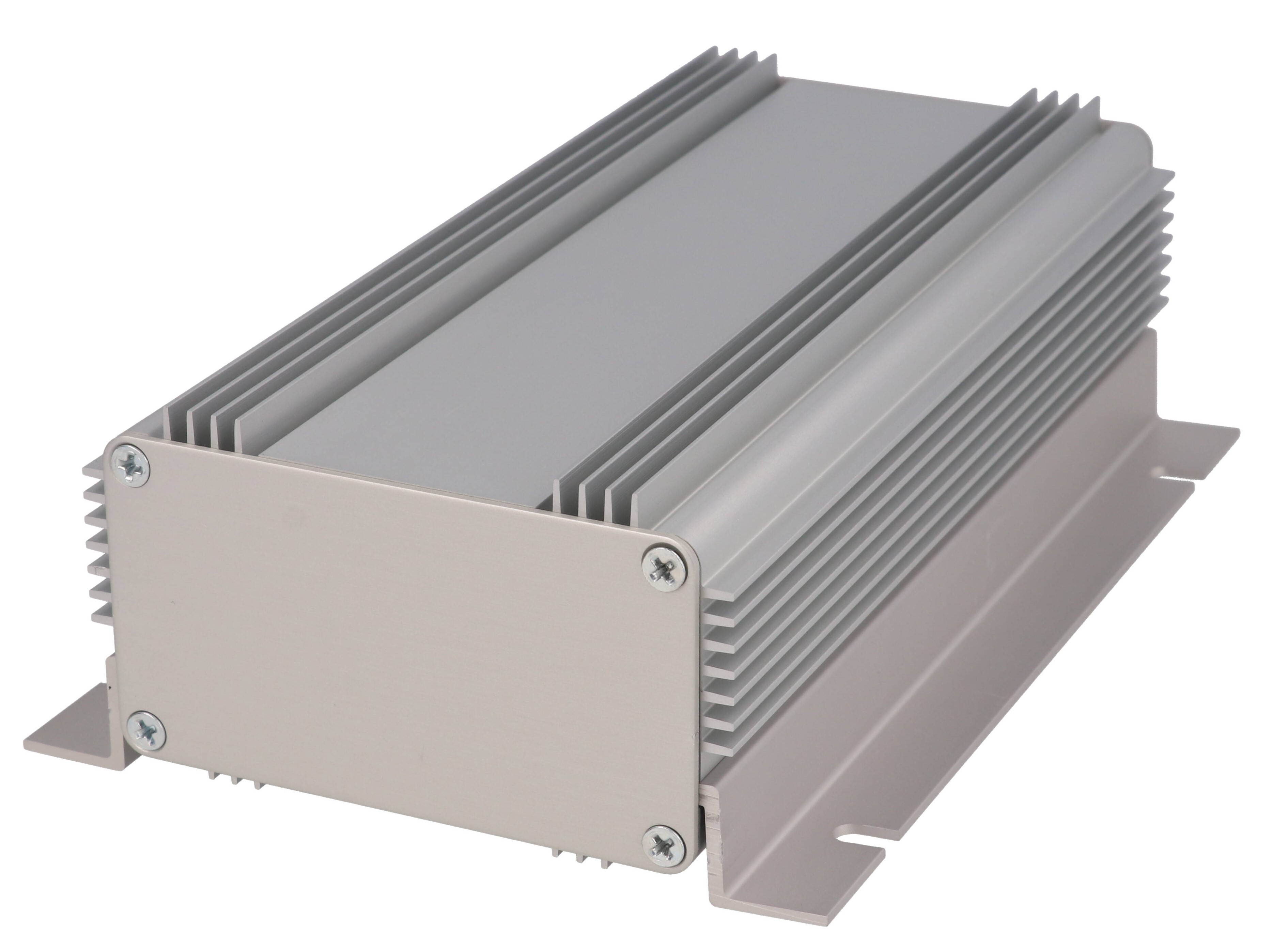

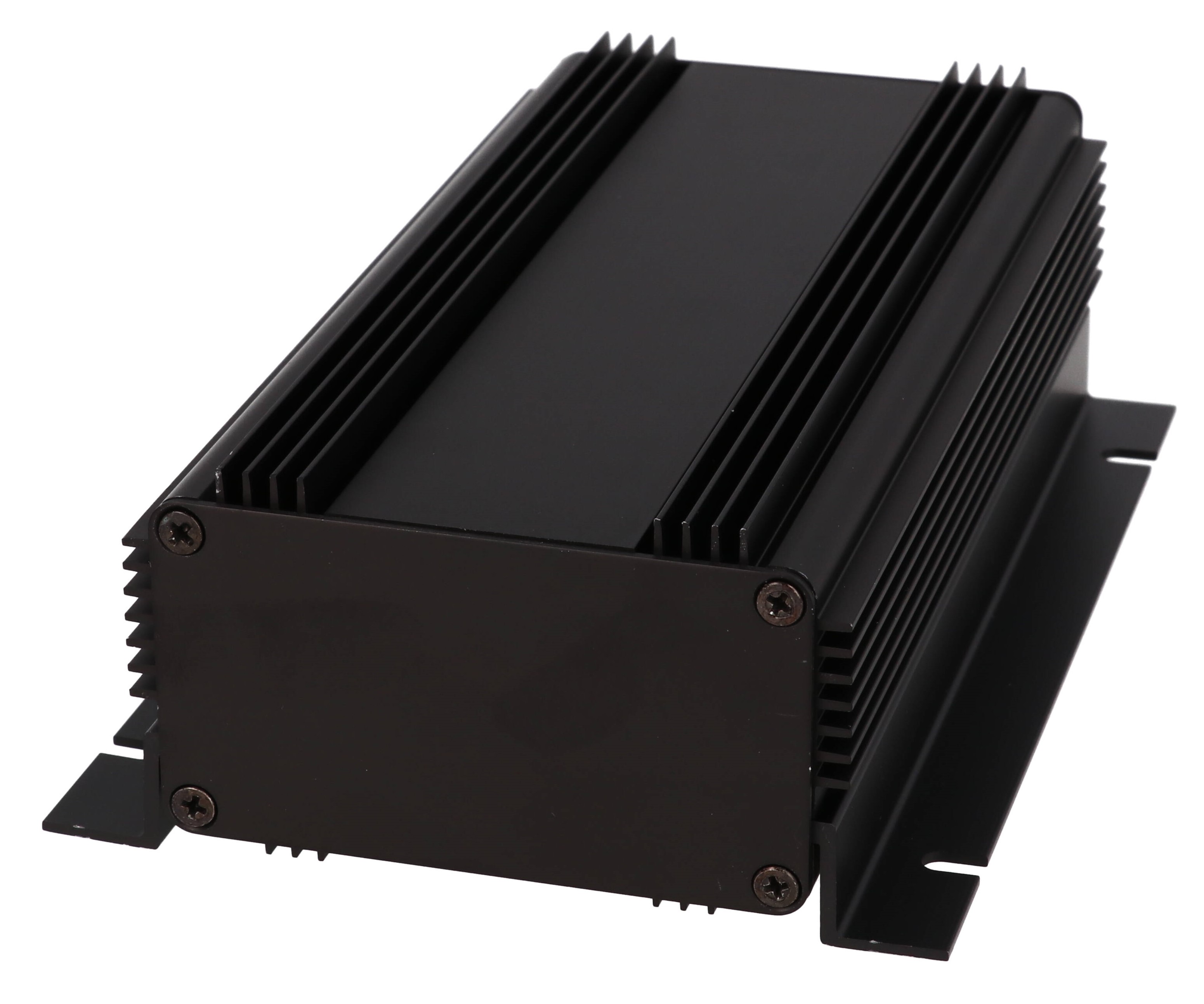

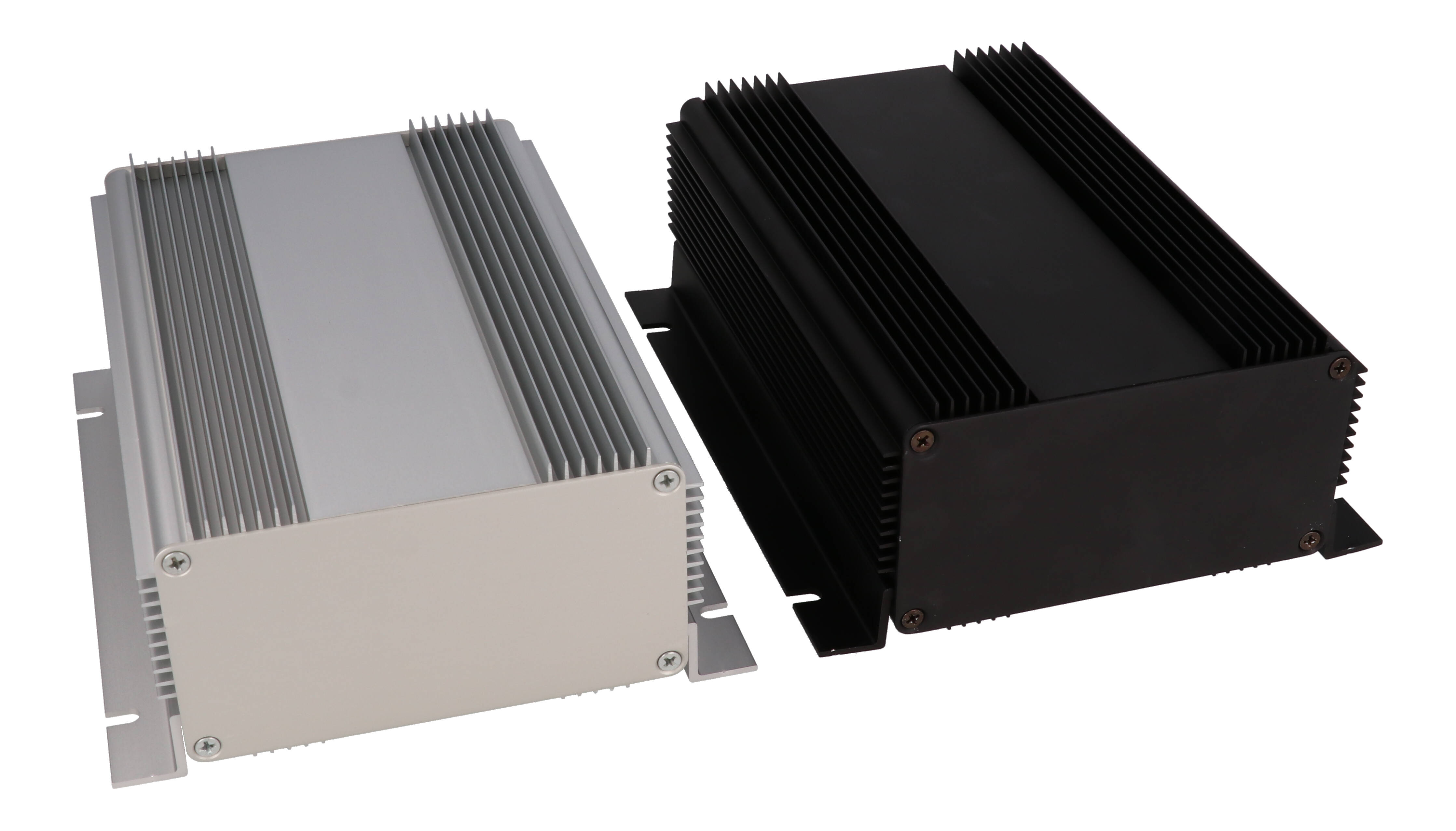

Available in clear or black anodize

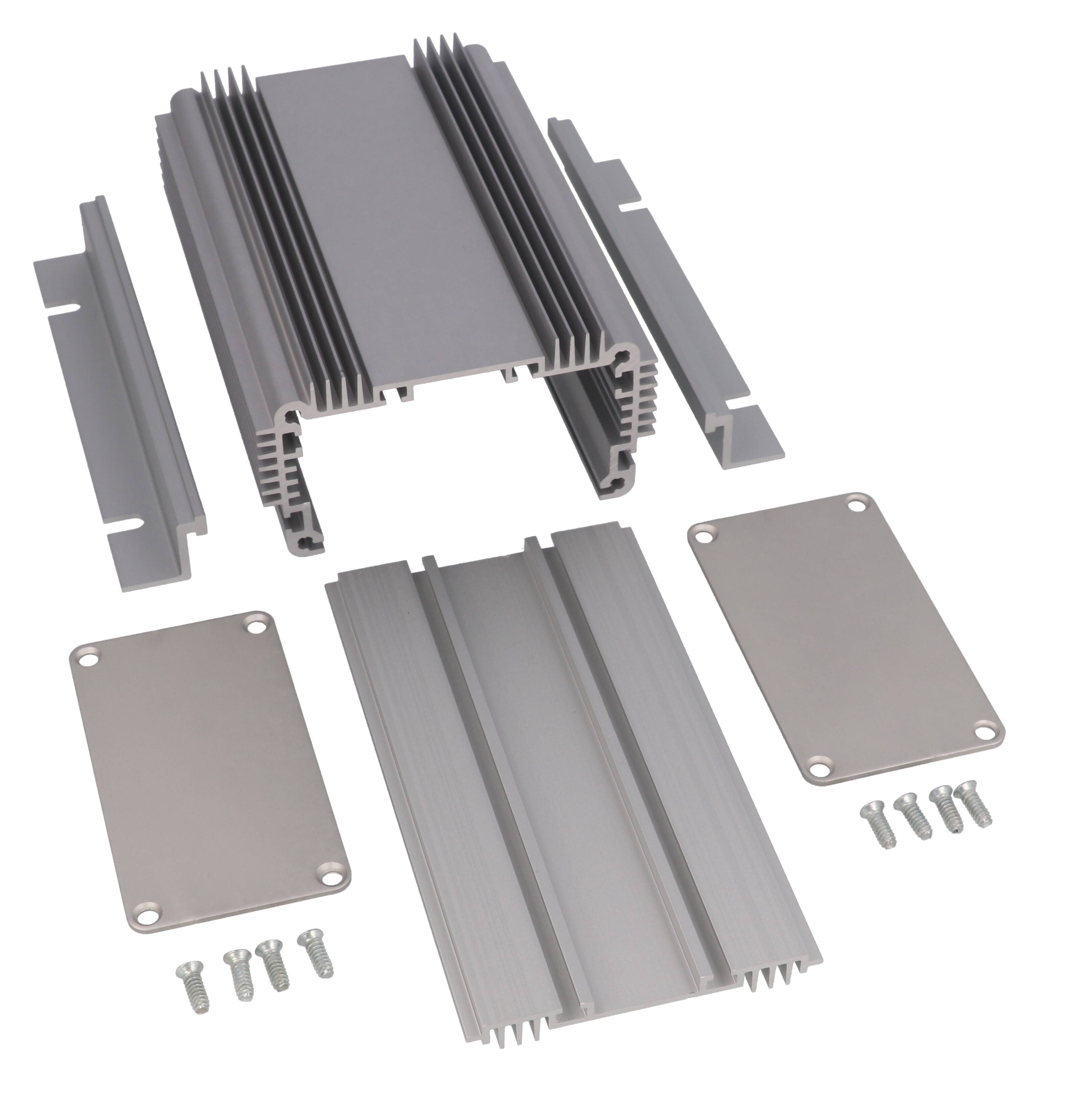

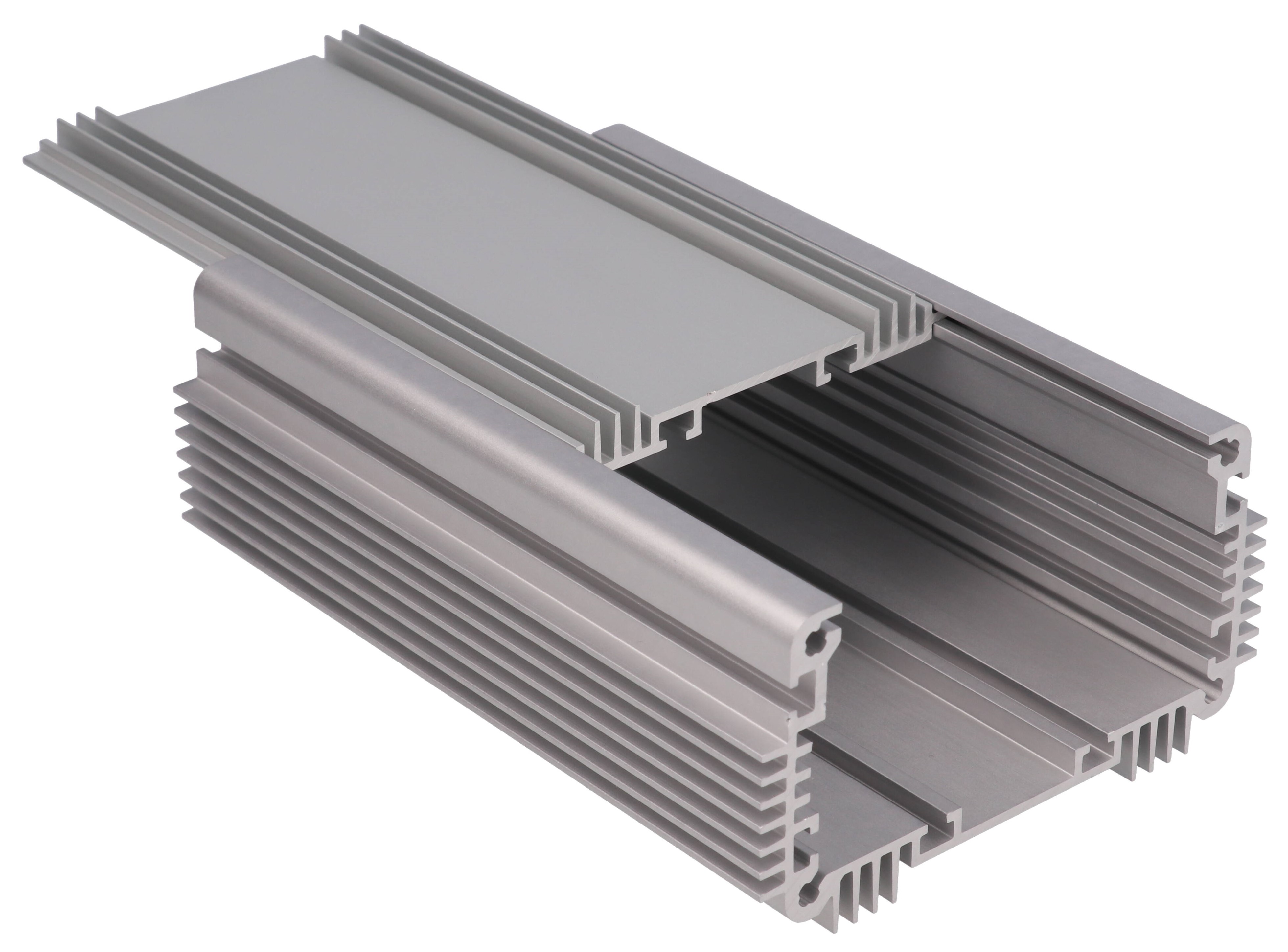

Enclosure kit includes main extrusion, slide-in mounting plate, mounting flanges, end panels, and screws. Internal slots make PC board installation easy.
Part Details
Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)
Enclosures
| Part Number | Anodize Color | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| 1455KHD1201 | Clear | 120.00 | 86.02 | 51.02 |
| 1455KHD1201BK | Black | 120.00 | 86.02 | 51.02 |
| 1455KHD1601 | Clear | 160.00 | 86.02 | 51.02 |
| 1455KHD1601BK | Black | 160.00 | 86.02 | 51.02 |
| 1455NHD1201 | Clear | 120.00 | 111.00 | 60.76 |
| 1455NHD1201BK | Black | 120.00 | 111.00 | 60.76 |
| 1455NHD1601 | Clear | 160.00 | 111.00 | 60.76 |
| 1455NHD1601BK | Black | 160.00 | 111.00 | 60.76 |
Replacement End Panels
| Clear Anodize | Black Anodize | |
|---|---|---|
| Enclosure Size | (10 pack) | (10 pack) |
| 1455KHD | 1455KAL-10 | 1455KALBK-10 |
| 1455NHD | 1455NAL-10 | 1455NALBK-10 |
