Step-Down (230VAC to 115VAC) Plug-In 175EU Series

Note: This product line has been discontinued as a stocked series. Information is for reference only. For alternative solution assistance, please contact Hammond here or call: USA (716) 630-7030, Canada and International (519) 822-2960.

Features

  • Single winding, does not provide isolation, for use where equipment is already isolated and only voltage change is required.
  • World wide applications, 50 or 60 Hz. operation, step down (230VAC to 115 VAC).
  • Input is circuit breaker protected.
  • Hi-pot tested to 2 KV RMS.
  • Indoor use only.
  • Remember - These units do NOT convert line frequency.
  • Note: Due to U.L changes in 2007 we have discontinued production of this version.

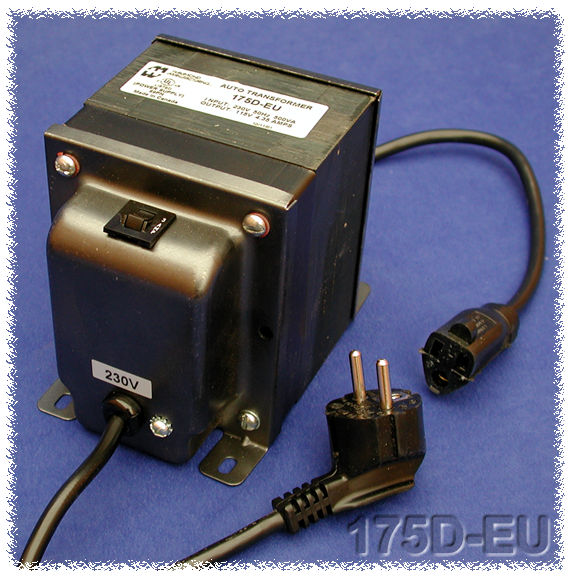

Gallery Image

Part No. Capacity Overall Dimensions Wt. Lbs.
VA A B C D E
175A-EU 100 3.16 4.25 3.81 2.50 2.94 3.5
175B-EU 200 3.16 4.50 3.81 2.50 3.19 4.5
175C-EU 300 3.16 5.00 3.81 2.50 3.69 6
175D-EU 500 3.80 6.00 4.68 3.00 4.81 10
175E-EU 750 3.80 7.06 4.68 3.00 5.38 14
175F-EU 1000 3.80 7.06 4.68 3.00 5.38 14.5
175G-EU 1500 4.40 6.63 6.30 3.50 6.09 22

Need Assistance? Contact Us.

Data subject to change without notice.
