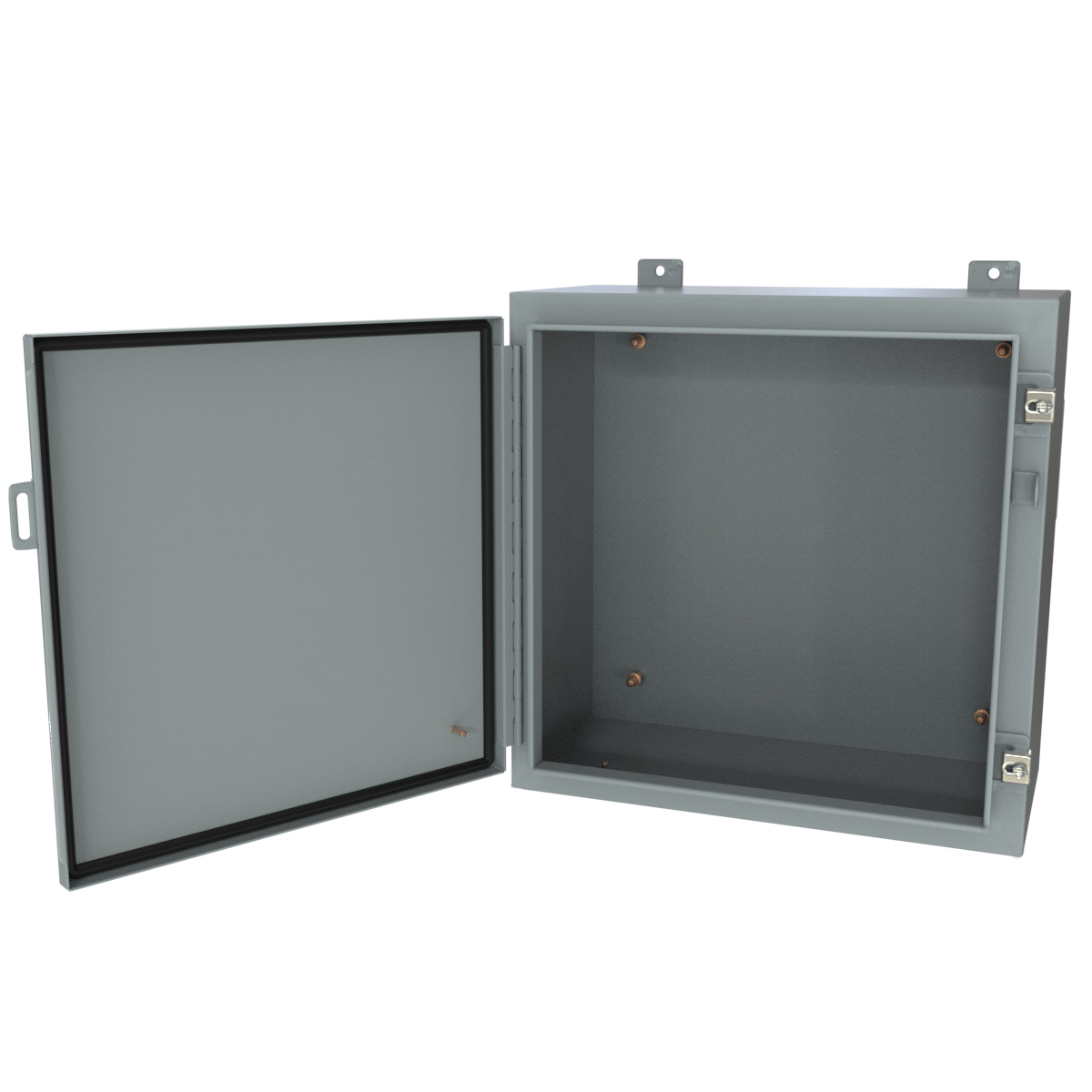

Type 4/12 Mild Steel Wallmount Enclosure - Less Panel 1418LP Series

Continuous Hinge Door with Clamps

English | Français

Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides protection where equipment may be hosed down or otherwise be very wet, or in outdoor applications for full weather protection.

Standards

  • UL 508A Type 3R,12, 13, 4
  • cUL Type 3R, 12, 13, 4
  • Complies with
    • NEMA Type 3R, 4, 12 and 13
    • IEC 60529, IP66

Construction

  • Formed 14 gauge steel bodies and doors.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Door stiffeners are provided in the larger enclosures for extra rigidity.
  • Welded brackets provide for enclosure mounting.
  • Formed lip on door and enclosure exclude flowing liquids and contaminants.
  • Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
  • Door is secured with easily operated stainless steel clamps.
  • Provision for padlocking.
  • Seamless poured-in place gasket.
  • Collar studs are provided for mount­ing optional inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
  • A literature pocket is provided for the inside of the door.
  • Note - Inner panel sold separately.

Finish

  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.

Accesorios

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).
Las referencias con asterisco corresponden a nuevos tamaños o configuraciones de embalaje.

Unidades mostradas: inch. Cambia de unidad: mm

Enclosure Optional Inner Panel
Part No. H W D White Part No. Galvanized Part No. H W
1418A6LP 12.00 24.00 6.00 18P2109 18G2109 9.00 21.00
1418B6LP 16.00 12.00 6.00 18P1309 18G1309 13.00 9.00
1418G6LP 16.00 16.00 6.00 18P1313 18G1313 13.00 13.00
1418CR6LP 16.00 20.00 6.00 18P1713 18G1713 13.00 17.00
1418CA6LP 20.00 12.00 6.00 18P1709 18G1709 17.00 9.00
1418C6LP 20.00 16.00 6.00 18P1713 18G1713 17.00 13.00
1418D6LP 20.00 20.00 6.00 18P1717 18G1717 17.00 17.00
1418ER6LP 20.00 24.00 6.00 18P2117 18G2117 17.00 21.00
1418AR6LP 24.00 12.00 6.00 18P2109 18G2109 21.00 9.00
1418H6LP 24.00 16.00 6.00 18P2113 18G2113 21.00 13.00
1418E6LP 24.00 20.00 6.00 18P2117 18G2117 21.00 17.00
1418J6LP 24.00 24.00 6.00 18P2121 18G2121 21.00 21.00
1418FG6LP 30.00 16.00 6.00 18P2713 18G2713 27.00 13.00
1418F6LP 30.00 20.00 6.00 18P2717 18G2717 27.00 17.00
1418K6LP 30.00 24.00 6.00 18P2721 18G2721 27.00 21.00
1418L6LP 36.00 24.00 6.00 18P3321 18G3321 33.00 21.00
1418M6LP 36.00 30.00 6.00 18P3327 18G3327 33.00 27.00
1418A8LP 12.00 24.00 8.00 18P2109 18G2109 9.00 21.00
1418B8LP 16.00 12.00 8.00 18P1309 18G1309 13.00 9.00
1418G8LP 16.00 16.00 8.00 18P1313 18G1313 13.00 13.00
1418CR8LP 16.00 20.00 8.00 18P1713 18G1713 13.00 17.00
1418CA8LP 20.00 12.00 8.00 18P1709 18G1709 17.00 9.00
1418C8LP 20.00 16.00 8.00 18P1713 18G1713 17.00 13.00
1418D8LP 20.00 20.00 8.00 18P1717 18G1717 17.00 17.00
1418ER8LP 20.00 24.00 8.00 18P2117 18G2117 17.00 21.00
1418AR8LP 24.00 12.00 8.00 18P2109 18G2109 21.00 9.00
1418H8LP 24.00 16.00 8.00 18P2113 18G2113 21.00 13.00
1418E8LP 24.00 20.00 8.00 18P2117 18G2117 21.00 17.00
1418J8LP 24.00 24.00 8.00 18P2121 18G2121 21.00 21.00
1418KR8LP 24.00 30.00 8.00 18P2721 18G2721 21.00 27.00
1418KA8LP 30.00 12.00 8.00 18P2709 18G2709 27.00 9.00
1418KG8LP 30.00 16.00 8.00 18P2713 18G2713 27.00 13.00
1418F8LP 30.00 20.00 8.00 18P2717 18G2717 27.00 17.00
1418K8LP 30.00 24.00 8.00 18P2721 18G2721 27.00 21.00
1418KK8LP 30.00 30.00 8.00 18P2727 18G2727 27.00 27.00
1418MR8LP 30.00 36.00 8.00 18P3327 18G3327 27.00 33.00
1418L8LP 36.00 24.00 8.00 18P3321 18G3321 33.00 21.00
1418M8LP 36.00 30.00 8.00 18P3327 18G3327 33.00 27.00
1418LL8LP 36.00 36.00 8.00 18P3333 18G3333 33.00 33.00
1418N8LP 42.00 24.00 8.00 18P3921 18G3921 39.00 21.00
1418O8LP 42.00 30.00 8.00 18P3927 18G3927 39.00 27.00
1418P8LP 42.00 36.00 8.00 18P3933 18G3933 39.00 33.00
1418Q8LP 48.00 24.00 8.00 18P4521 18G4521 45.00 21.00
1418R8LP 48.00 30.00 8.00 18P4527 18G4527 45.00 27.00
1418S8LP 48.00 36.00 8.00 18P4533 18G4533 45.00 33.00
1418T8LP 60.00 36.00 8.00 18P5733 18G5733 57.00 33.00
1418B10LP 16.00 12.00 10.00 18P1309 18G1309 13.00 9.00
1418C10LP 20.00 16.00 10.00 18P1713 18G1713 17.00 13.00
1418D10LP 20.00 20.00 10.00 18P1717 18G1717 17.00 17.00
1418AR10LP 24.00 12.00 10.00 18P2109 18G2109 21.00 9.00
1418E10LP 24.00 20.00 10.00 18P2117 18G2117 21.00 17.00
1418J10LP 24.00 24.00 10.00 18P2121 18G2121 21.00 21.00
1418F10LP 30.00 20.00 10.00 18P2717 18G2717 27.00 17.00
1418K10LP 30.00 24.00 10.00 18P2721 18G2721 27.00 21.00
1418L10LP 36.00 24.00 10.00 18P3321 18G3321 33.00 21.00
1418M10LP 36.00 30.00 10.00 18P3327 18G3327 33.00 27.00
1418O10LP 42.00 30.00 10.00 18P3927 18G3927 39.00 27.00
1418P10LP 42.00 36.00 10.00 18P3933 18G3933 39.00 33.00
1418R10LP 48.00 30.00 10.00 18P4527 18G4527 45.00 27.00
1418S10LP 48.00 36.00 10.00 18P4533 18G4533 45.00 33.00
1418T10LP 60.00 36.00 10.00 18P5733 18G5733 57.00 33.00
1418C12LP 20.00 16.00 12.00 18P1713 18G1713 17.00 13.00
1418E12LP 24.00 20.00 12.00 18P2117 18G2117 21.00 17.00
1418J12LP 24.00 24.00 12.00 18P2121 18G2121 21.00 21.00
1418K12LP 30.00 24.00 12.00 18P2721 18G2721 27.00 21.00
1418KK12LP 30.00 30.00 12.00 18P2727 18G2727 27.00 27.00
1418L12LP 36.00 24.00 12.00 18P3321 18G3321 33.00 21.00
1418M12LP 36.00 30.00 12.00 18P3327 18G3327 33.00 27.00
1418LL12LP 36.00 36.00 12.00 18P3333 18G3333 33.00 33.00
1418O12LP 42.00 30.00 12.00 18P3927 18G3927 39.00 27.00
1418P12LP 42.00 36.00 12.00 18P3933 18G3933 39.00 33.00
1418S12LP 48.00 36.00 12.00 18P4533 18G4533 45.00 33.00
1418T12LP 60.00 36.00 12.00 18P5733 18G5733 57.00 33.00
1418U12LP 72.00 30.00 12.00 18P6927 18G6927 69.00 27.00
1418V12LP 72.00 36.00 12.00 18P6933 18G6933 69.00 33.00
1418E16LP 24.00 20.00 16.00 18P2117 18G2117 21.00 17.00
1418J16LP 24.00 24.00 16.00 18P2121 18G2121 21.00 21.00
1418K16LP 30.00 24.00 16.00 18P2721 18G2721 27.00 21.00
1418M16LP 36.00 30.00 16.00 18P3327 18G3327 33.00 27.00
1418P16LP 42.00 36.00 16.00 18P3933 18G3933 39.00 33.00
1418S16LP 48.00 36.00 16.00 18P4533 18G4533 45.00 33.00
1418T16LP 60.00 36.00 16.00 18P5733 18G5733 57.00 33.00
1418U16LP 72.00 30.00 16.00 18P6927 18G6927 69.00 27.00
1418K20LP 30.00 24.00 20.00 18P2721 18G2721 27.00 21.00
1418M20LP 36.00 30.00 20.00 18P3327 18G3327 33.00 27.00
1418S20LP 48.00 36.00 20.00 18P4533 18G4533 45.00 33.00
1418T20LP 60.00 36.00 20.00 18P5733 18G5733 57.00 33.00
1418K24LP 30.00 24.00 24.00 18P2721 18G2721 27.00 21.00
1418U24LP 72.00 30.00 24.00 18P6927 18G6927 69.00 27.00
