Type 12 Mild Steel Modular Freestanding Enclosure IME Serie

Hinge Door with Handle

English | Français

Note: This product line has been discontinued as a stocked series on March 01, 2016.
Information is for reference only. It has been replaced with HME Series.
For alternative solution assistance, contact Hammond here or call: USA (716) 630-7030, Canada and International (519) 822-2960.

Application

  • The IME product line provides users with a rugged housing for industrial control and operator interface in harsh industrial environments.
  • Modular design permits joining of units together for large scale and mixed use applications.
  • A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference.

Standards

  • UL 508A Type 12
  • CSA Type 12
  • Complies with
    • NEMA Type 12
    • IEC 60529 IP54

Construction

  • Frame with integral solid top
  • Lifting eyebolts
  • Removable bottom panel
  • Solid front door with key locking handle
  • Removable rear cover panel
  • Inner mounting panel, additional panels available

Finish

  • Formed 14 gauge steel.
  • Frame has welded corner reinforcements.
  • Mounting channels on sides of enclosure are oriented front to back for depth adjustment of mounting panels.
  • Oil resistant gaskets are permanently secured on all openings.
  • Reinforced eyebolts are provided for easy enclosure lifting.
  • Frames are easily joined together with an optional joining kit.
  • Doors can be easily removed and interchanged.
  • Optional formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet. Side panels must be ordered separately.
  • Bonding and grounding studs are provided for all doors and panels.

Accesorios

Gallery Image

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).

Unidades mostradas: inch. Cambia de unidad: mm

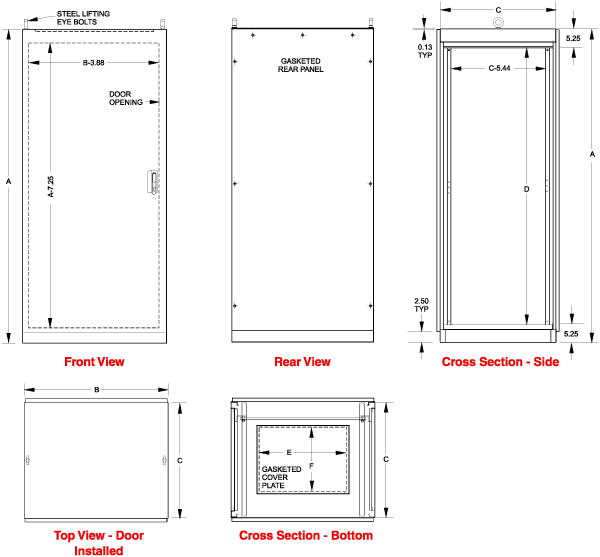

Part No. Nominal Dimensions Overall Dimensions Panel Dimensions Ship Wt.
A x B x C (mm) A B C D E F Height Width lbs
IME1666 1600 x 600 x 600 70.31 23.00 23.63 59.81 13.00 10.50 61.75 17.75 235
IME1668 1600 x 600 x 800 70.31 23.00 31.50 59.81 13.00 17.50 61.75 17.75 245
IME1676 1600 x 700 x 600 70.31 28.00 23.63 59.81 17.00 10.50 61.75 22.75 260
IME1678 1600 x 700 x 800 70.31 28.00 31.50 59.81 17.00 17.50 61.75 22.75 270
IME1686 1600 x 800 x 600 70.31 31.50 23.63 59.81 17.00 10.50 61.75 26.25 285
IME1688 1600 x 800 x 800 70.31 31.50 31.50 59.81 17.00 17.50 61.75 26.25 300
IME1864 1800 x 600 x 400 77.31 23.00 15.75 66.81 13.00 10.50 68.75 17.75 225
IME1865 1800 x 600 x 500 77.31 23.00 19.63 66.81 13.00 10.50 68.75 17.75 230
IME1866 1800 x 600 x 600 77.31 23.00 23.63 66.81 13.00 10.50 68.75 17.75 250
IME1868 1800 x 600 x 800 77.31 23.00 31.50 66.81 13.00 17.50 68.75 17.75 270
IME1876 1800 x 700 x 600 77.31 28.00 23.63 66.81 17.00 10.50 68.75 22.75 275
IME1878 1800 x 700 x 800 77.31 28.00 31.50 66.81 17.00 17.50 68.75 22.75 295
IME1884 1800 x 800 x 400 77.31 31.50 15.75 66.81 17.00 10.50 68.75 26.25 275
IME1885 1800 x 800 x 500 77.31 31.50 19.63 66.81 17.00 10.50 68.75 26.25 295
IME1886 1800 x 800 x 600 77.31 31.50 23.63 66.81 17.00 10.50 68.75 26.25 300
IME1888 1800 x 800 x 800 77.31 31.50 31.50 66.81 17.00 17.50 68.75 26.25 320
IME18105 1800 x 1000 x 500 77.31 39.37 19.63 66.81 24.06 10.50 68.75 34.12 345
IME18106 1800 x 1000 x 600 77.31 39.37 23.63 66.81 24.06 10.50 68.75 34.12 350
IME18108 1800 x 1000 x 800 77.31 39.37 31.50 66.81 24.06 17.50 68.75 34.12 360
IME2064 2000 x 600 x 400 86.06 23.00 15.75 75.56 13.00 10.50 77.50 17.75 240
IME2065 2000 x 600 x 500 86.06 23.00 19.63 75.56 13.00 10.50 77.50 17.75 250
IME2066 2000 x 600 x 600 86.06 23.00 23.63 75.56 13.00 10.50 77.50 17.75 260
IME2068 2000 x 600 x 800 86.06 23.00 31.50 75.56 13.00 17.50 77.50 17.75 285
IME2076 2000 x 700 x 600 86.06 28.00 23.63 75.56 17.00 10.50 77.50 22.75 290
IME2078 2000 x 700 x 800 86.06 28.00 31.50 75.56 17.00 17.50 77.50 22.75 305
IME2084 2000 x 800 x 400 86.06 31.50 15.75 75.56 17.00 10.50 77.50 26.25 300
IME2085 2000 x 800 x 500 86.06 31.50 19.63 75.56 17.00 10.50 77.50 26.25 310
IME2086 2000 x 800 x 600 86.06 31.50 23.63 75.56 17.00 10.50 77.50 26.25 320
IME2088 2000 x 800 x 800 86.06 31.50 31.50 75.56 17.00 17.50 77.50 26.25 340
IME20105 2000 x 1000 x 500 86.06 39.37 19.63 75.56 24.06 10.50 77.50 34.12 375
IME20106 2000 x 1000 x 600 86.06 39.37 23.63 75.56 24.06 10.50 77.50 34.12 385
IME20108 2000 x 1000 x 800 86.06 39.37 31.50 75.56 24.06 17.50 77.50 34.12 390
