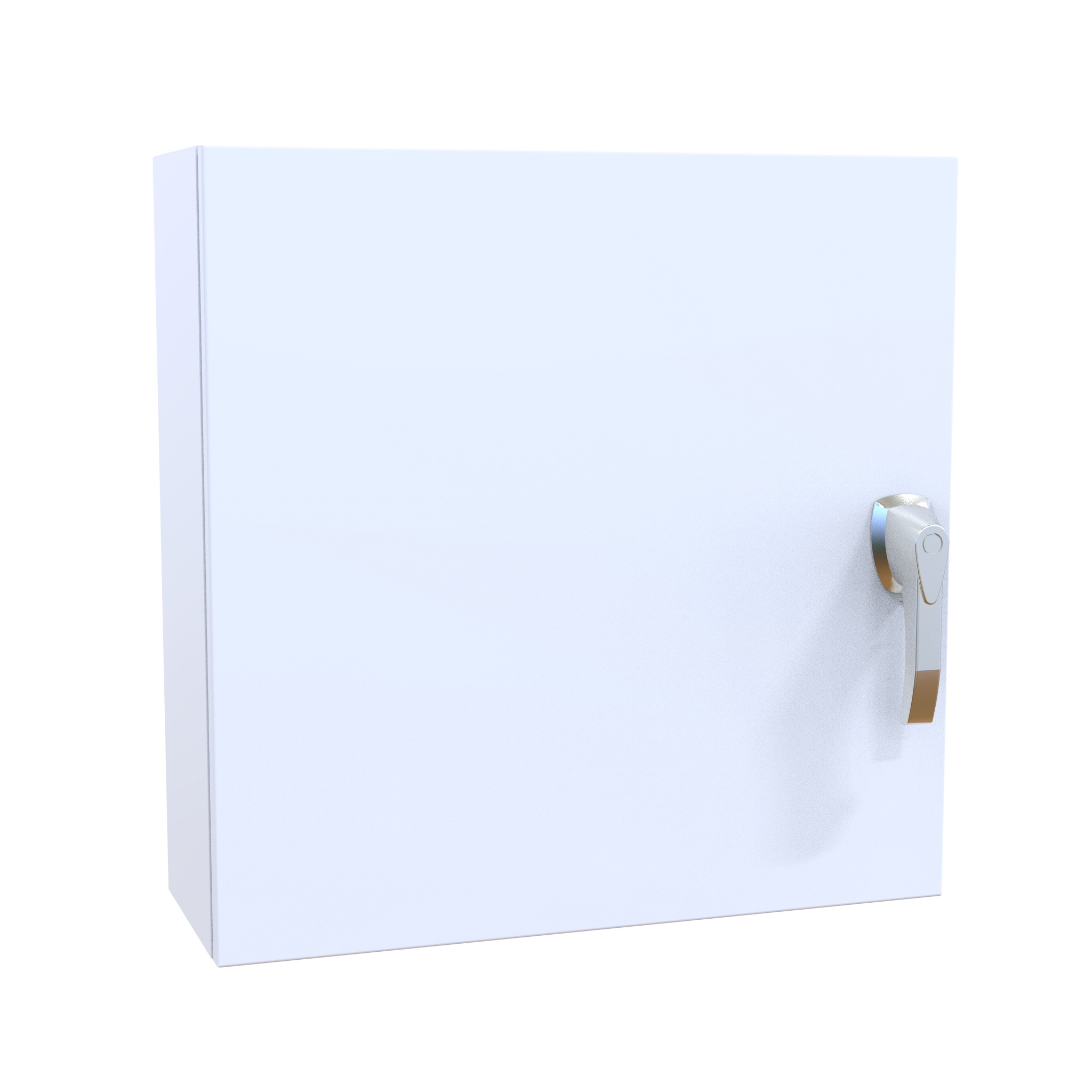

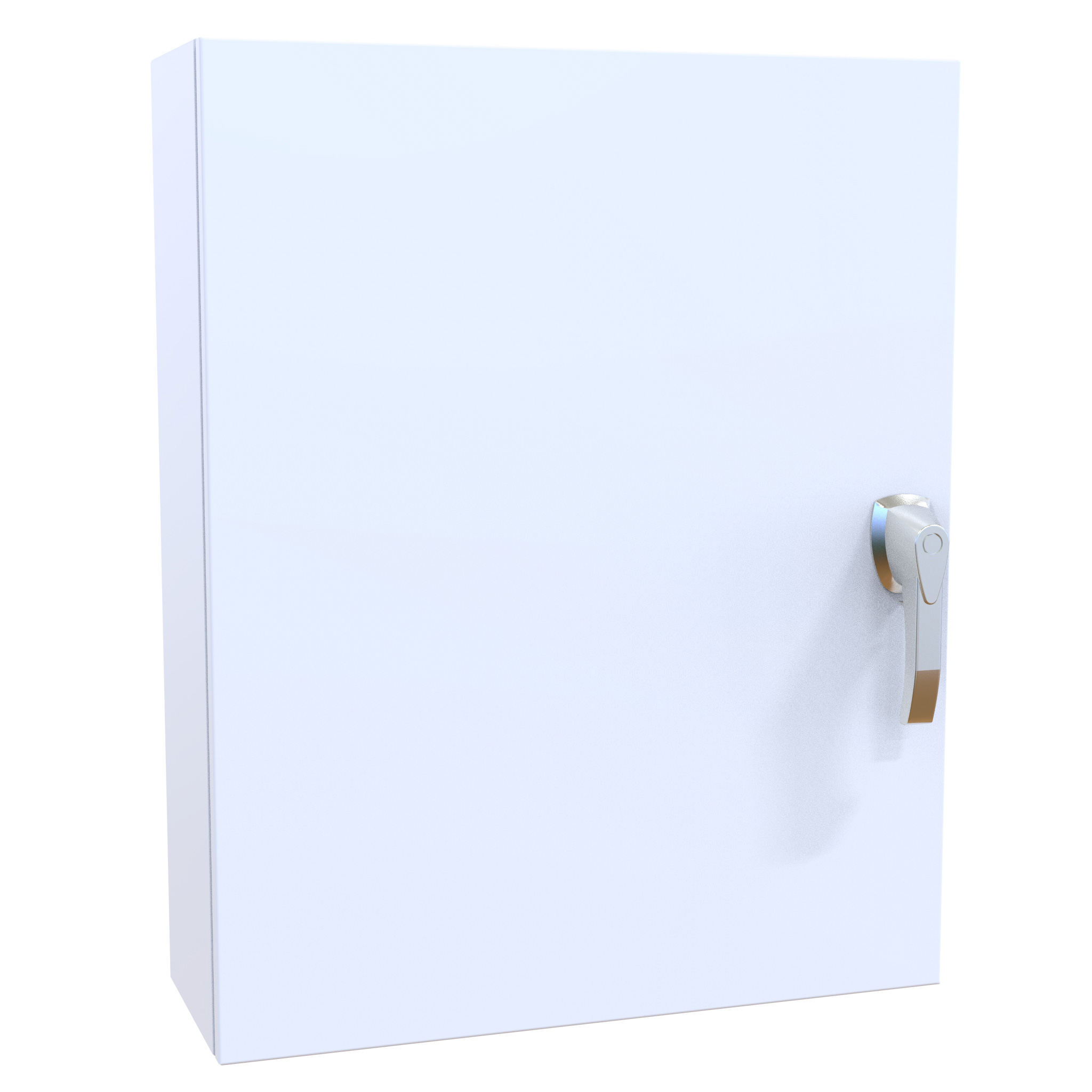

Type 4X Painted White Stainless Steel Wallmount Enclosure Eclipse Series

Application

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
• Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
• A wide range of sizes and practical accessories make this product line a complete package.

Standards

• UL 508A Type 3R, 4, 4X and 12
• CSA Type 3R, 4, 4X and 12
• Complies with
  • NEMA 3R, 4, 4X, 12 and 13
  • IEC 60529, IP 66

Construction

• Formed 14 gauge 304 stainless steel.
• Continuously welded seams ground smooth.
• Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• Doors are secured with a 3 point Handle in 316 stainless with pad lockable feature.
• Doors may be easily removed for modifications and are interchangeable.
• Seamless poured-in place gasket.
• Collar studs provided for mounting inner panel.
• Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
• Bonding stud provided on door and grounding stud installed in enclosure.
• Stainless steel hinge pins and hinges.

Finish

• Cover and enclosure are finished in recoatable smooth RAL 9003 White powder coating inside and out.

Accesorios

• Additional Inner Panels
• Swing Panel
• Swing Frame
• Eclipse DIN Rail Mounting Kit
• Eclipse DIN Rails
• Door Stop Kit
• Mounting Foot Kit
• Rear Hole Plugs
• Drip Shield Kit
• Type 12/4, 4X Handle Kits
• Replacement Hinge Pins
• Climate Control
• Lighting
• General Accessories
