Key Features:
Two Versions:
- “1411” series - 0.04” thick aluminum (26 sizes)
- “1412” series - 20 gauge steel (8 sizes).
- Four self-tapping screws included.
Features:
- Versions without mounting flanges are available in unfinished aluminum or smooth ASA 61 grey powder coat (Hammond color GY2)
- Versions with wall-mounting flanges are available in unfinished aluminum or smooth black powder coat (Hammond color BK2)
- Unpainted aluminum version is protected through manufacturing and shipping with a plastic film cover to ensure a high quality finish. Also doubles as a removable drilling template.
- Steel finished in ASA 61 grey baked powder paint (inside and out to prevent rust).
- Replacement screws 1421J6 (Pkg. of six (6), 6-32 Philips head screws).
Photo Features:

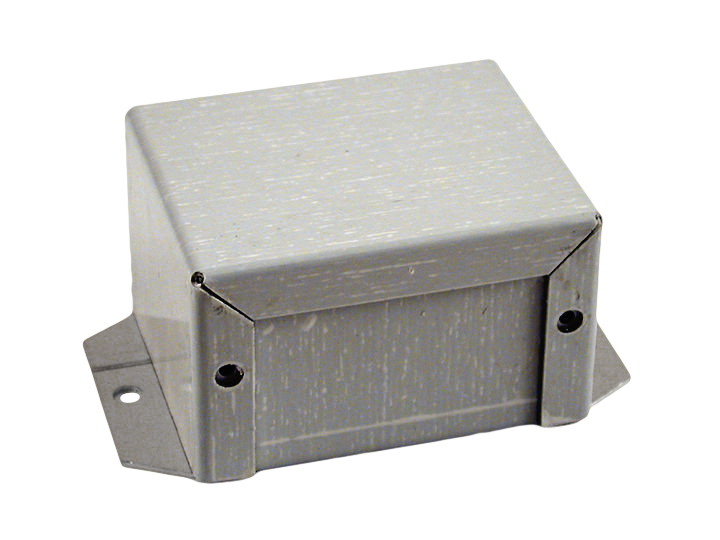

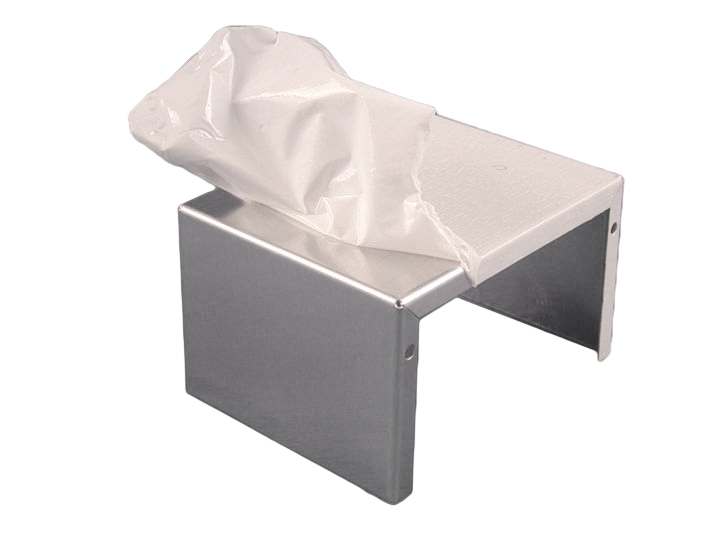

Unfinished aluminum versions have protective wrapping to maintain high quality finish.

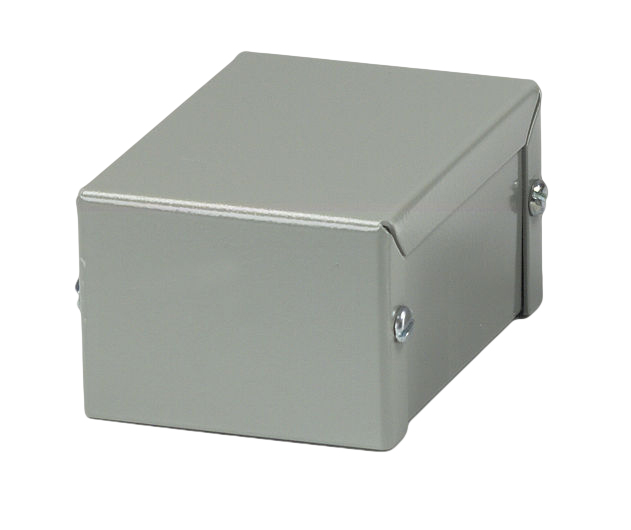

Standard versions are available unfinished or powder coated gray. Steel version available only in gray.

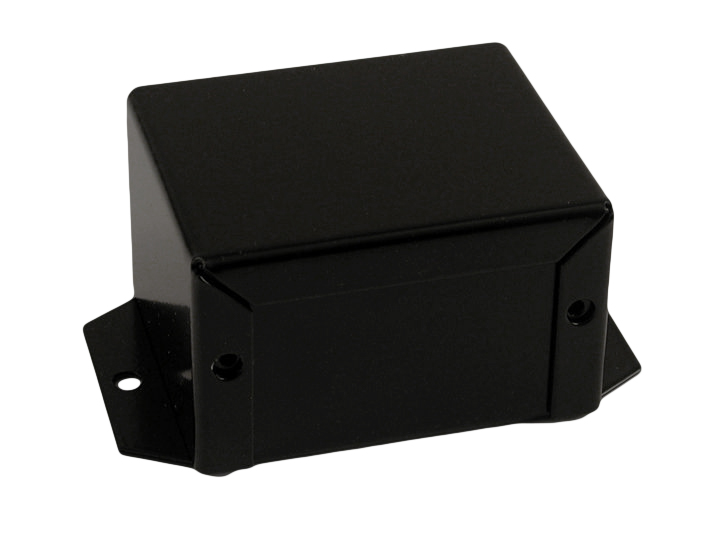

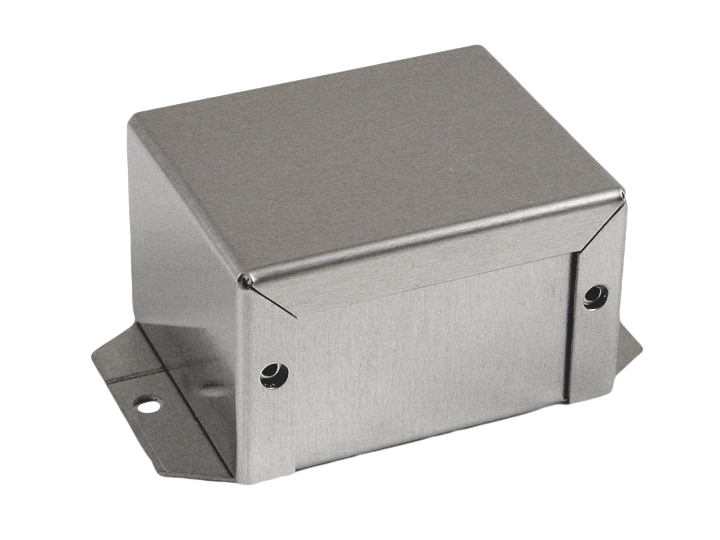

Flanged aluminum versions available unfinished or powder coated in smooth black.
Accesorios
Detalles de la pieza
Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).
Enclosures
Unidades mostradas: inch. Cambia de unidad: mm
| Aluminum | Aluminum | Aluminum | Aluminum | Steel | |||
|---|---|---|---|---|---|---|---|
| Gray | Unfinished | Black w/ Flanges | Unfinished w/ Flanges | Gray | Length | Width | Height |
| 1411B | 1411BU | 1411FBBBK | 1411FBBU | 2.70 | 2.20 | 1.60 | |
| 1411C | 1411CU | 1411FBCBK | 1411FBCU | 3.20 | 2.20 | 1.10 | |
| 1411D | 1411DU | 1411FBDBK | 1411FBDU | 3.20 | 2.20 | 1.60 | |
| 1411G | 1411GU | 1411FBGBK | 1411FBGU | 4.00 | 2.20 | 1.60 | |
| 1411H | 1411HU | 1411FBHBK | 1411FBHU | 4.00 | 2.20 | 2.20 | |
| 1411F | 1411FU | 1411FBFBK | 1411FBFU | 4.00 | 2.20 | 3.00 | |
| 1411J | 1411JU | 1412J | 4.00 | 4.00 | 2.00 | ||
| 1411K | 1411KU | 1411FBKBK | 1411FBKU | 5.00 | 2.20 | 2.20 | |
| 1411N | 1411NU | 1411FBNBK | 1411FBNU | 5.00 | 3.00 | 2.20 | |
| 1411L | 1411LU | 1411FBLBK | 1411FBLU | 5.00 | 4.00 | 3.00 | |
| 1411M | 1411MU | 6.00 | 3.00 | 3.00 | |||
| 1411PP | 1411PPU | 1412PP | 6.00 | 4.00 | 2.00 | ||
| 1411P | 1411PU | 1411FBPBK | 1411FBPU | 6.00 | 5.00 | 4.00 | |
| 1411Q | 1411QU | 1411FBQBK | 1411FBQU | 7.00 | 5.00 | 3.00 | |
| 1411SS | 1411SSU | 1412SS | 8.00 | 4.00 | 2.00 | ||
| 1411S | 1411SU | 1411FBSBK | 1411FBSU | 8.00 | 4.00 | 3.00 | |
| 1411RR | 1411RRU | 1412RR | 8.00 | 6.00 | 2.00 | ||
| 1411R | 1411RU | 1411FBRBK | 1411FBRU | 8.00 | 6.00 | 3.50 | |
| 1411T | 1411TU | 10.00 | 2.20 | 1.60 | |||
| 1411TT | 1411TTU | 1412TT | 10.00 | 6.00 | 2.00 | ||
| 1411U | 1411UU | 1411FBUBK | 1411FBUU | 10.00 | 6.00 | 3.50 | |
| 1411W | 1411WU | 12.00 | 3.00 | 2.20 | |||
| 1411X | 1411XU | 1411FBXBK | 1411FBXU | 1412X | 12.00 | 7.00 | 4.00 |
| 1411V | 1411VU | 1412V | 12.00 | 8.00 | 3.00 | ||
| 1411Y | 1411YU | 1412Y | 16.00 | 8.00 | 3.00 | ||
| 1411Z | 1411ZU | 17.00 | 5.00 | 4.00 |
¿Necesita ayuda? Póngase en contacto con nosotros.
Datos sujetos a cambios sin previo aviso.
