ABS Plastic Miniature Enclosures Snap-fit, wall-mount. 1551SNAP Series

Vented Sensor Enclosure

English | Français

Key Features:

  • Simple snap fit assembly and wallmounting features designed for IoT or general purpose applications.
  • Choice of vented or unvented.
  • Vented versions protect electronics from harmful contact with hands or tools, but allow entry of air and moisture for applications which require environmental exposure (e.g., sensors).
  • Ideally suited for mounting printed circuit boards.
  • Slots on the base of the enclosure allow for easy wallmounting.
  • Knockout on the base can be removed with a screwdriver and used for wire entry.
  • Molded in ABS plastic. Material has a UL94-HB rating.
  • Choice of (4) square/rectangle sizes and (3) circle sizes. Stocked in black, gray, and white.
  • Enclosure features a snap fit assembly and can be reopened repeatedly as needed.  No hardware required.
  • (4) PC board standoffs molded into interior (see drawings for details).
  • Designed to meet IP30.

Notes:

  • To secure a PC board, use self tapping #2 x 3/16" screws (not included). See part number 1553WTS100 (pack of 100).

Photo Features:

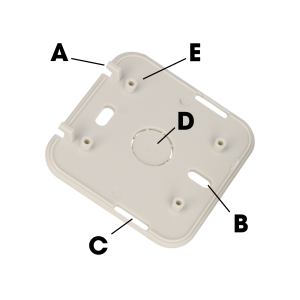

Enclosure base features:
  • A) Assembly hooks (square/rectangle models only)
  • B) Wall-mounting slots
  • C) Snap-fit closures
  • D) Wire entry knockout
  • E) PC board standoffs

Black

Gray

White

Vídeos

Detalles de la pieza

Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).

Square and Rectangle Enclosures

Unidades mostradas: mm. Cambia de unidad: inch

Vented Unvented Color Length Width Depth
1551V1BK 1551SNAP1BK Black 40 40 20
1551V1GY 1551SNAP1GY Grey 40 40 20
1551V1WH 1551SNAP1WH White 40 40 20
1551V2BK 1551SNAP2BK Black 80 40 20
1551V2GY 1551SNAP2GY Grey 80 40 20
1551V2WH 1551SNAP2WH White 80 40 20
1551V3BK 1551SNAP3BK Black 60 60 20
1551V3GY 1551SNAP3GY Grey 60 60 20
1551V3WH 1551SNAP3WH White 60 60 20
1551V4BK 1551SNAP4BK Black 80 80 20
1551V4GY 1551SNAP4GY Grey 80 80 20
1551V4WH 1551SNAP4WH White 80 80 20

Circle Enclosures

Unidades mostradas: mm. Cambia de unidad: inch

Vented Unvented Color Diameter Depth
1551V11BK 1551SNAP11BK Black 45 20
1551V11GY 1551SNAP11GY Grey 45 20
1551V11WH 1551SNAP11WH White 45 20
1551V12BK 1551SNAP12BK Black 60 20
1551V12GY 1551SNAP12GY Grey 60 20
1551V12WH 1551SNAP12WH White 60 20
1551V13BK 1551SNAP13BK Black 80 20
1551V13GY 1551SNAP13GY Grey 80 20
1551V13WH 1551SNAP13WH White 80 20
