Drawing Downloads
| Additional Downloads |
|---|
| Specification Sheet |
| BUL10020 - MISC - ENCLOSURE DETAILS |
| CE Declaration |
| Part Attributes | |
|---|---|
| Part Number | 1418S20LP |

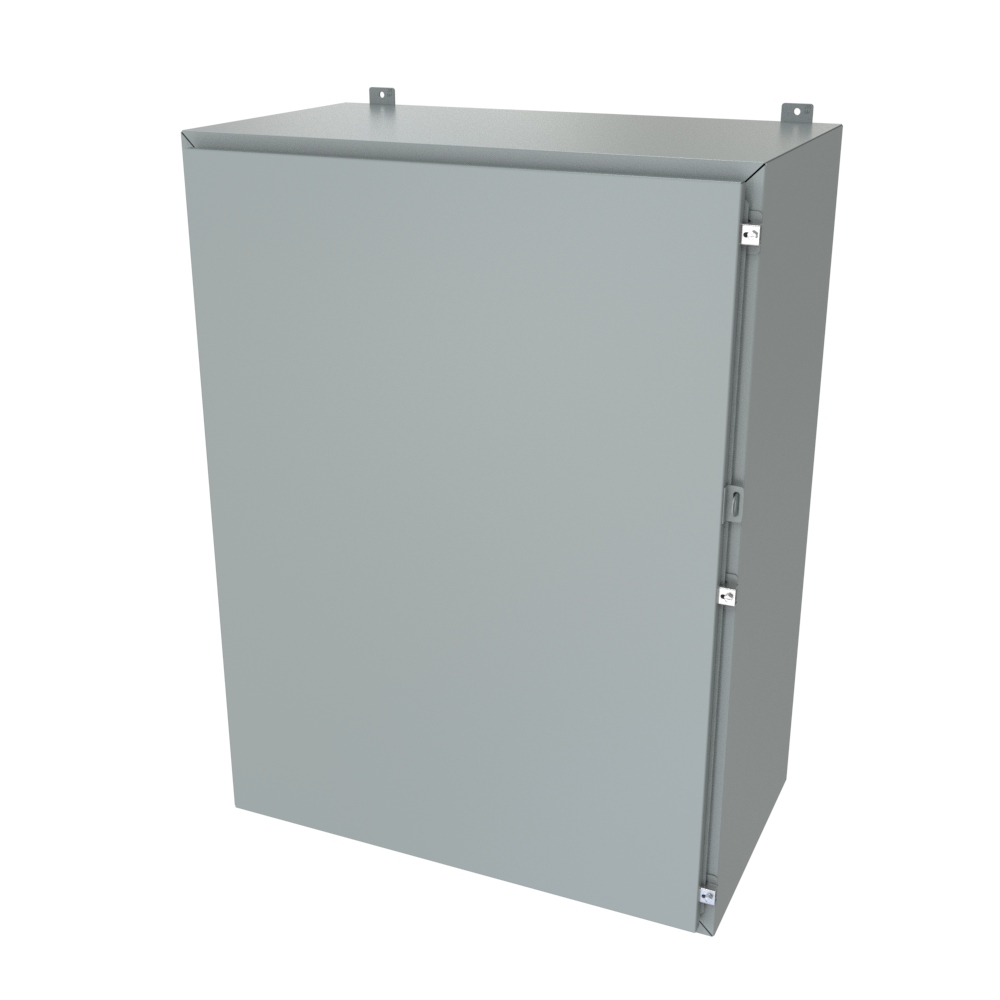

| Series | Type 4/12 Mild Steel Wallmount Enclosure - Less Panel (1418LP Series) |
| Short Description | NEMA 4/12 ENCL 48X36X20 |
| Long Description | N4/12 Wallmount Encl less panel - 48 x 36 x 20 - Steel/Gray |
| Size H x W x D |
48 in x 36 in x 20 in (1,219 mm x 914 mm x 508 mm) |
| Shipping Weight | 174 lbs (78.93 kg) |
| UNSPSC | 39121324 |
| UPC | 623980371313 |
| UL File # | E65324 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | Skid |
