| Part Attributes | |
|---|---|

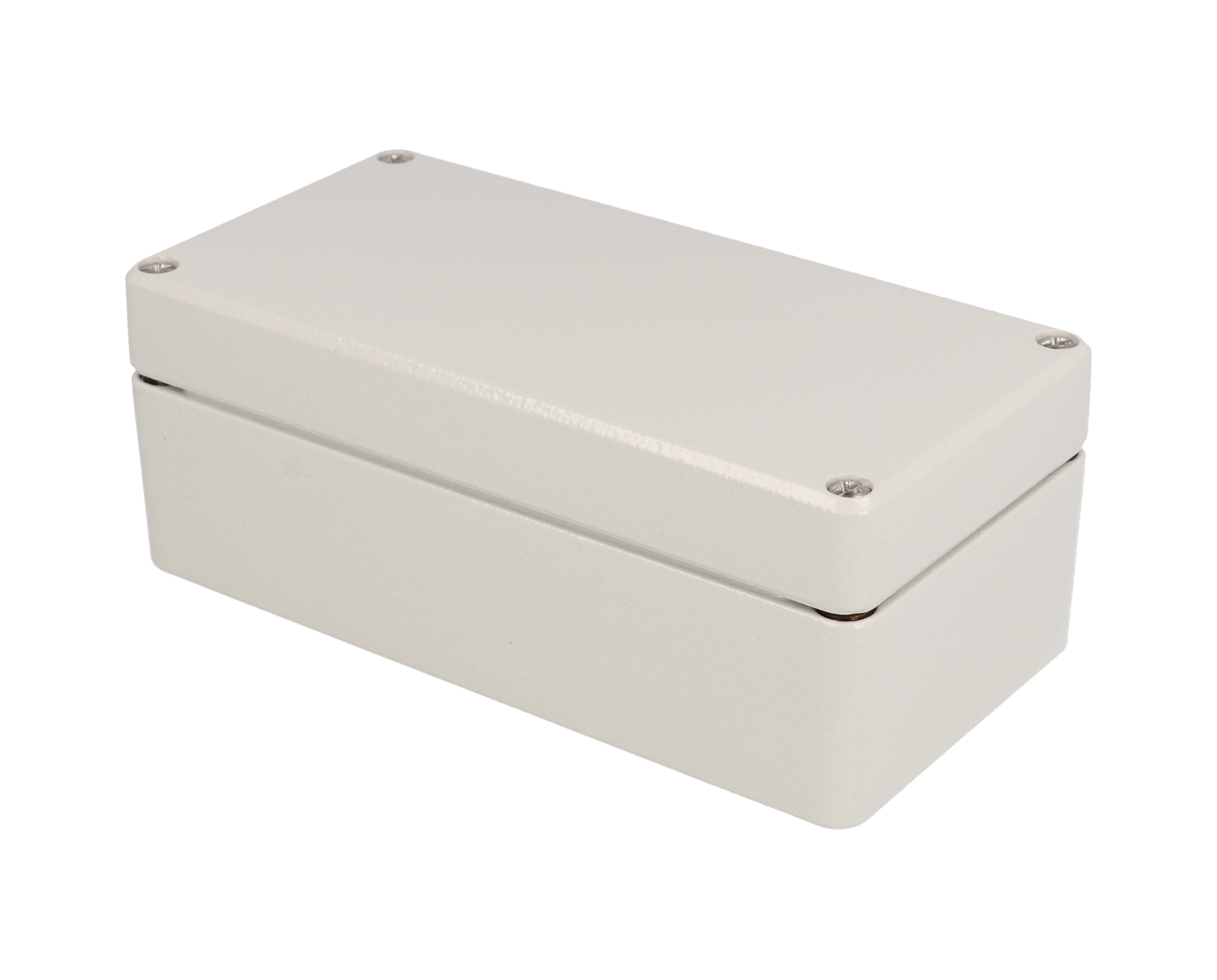

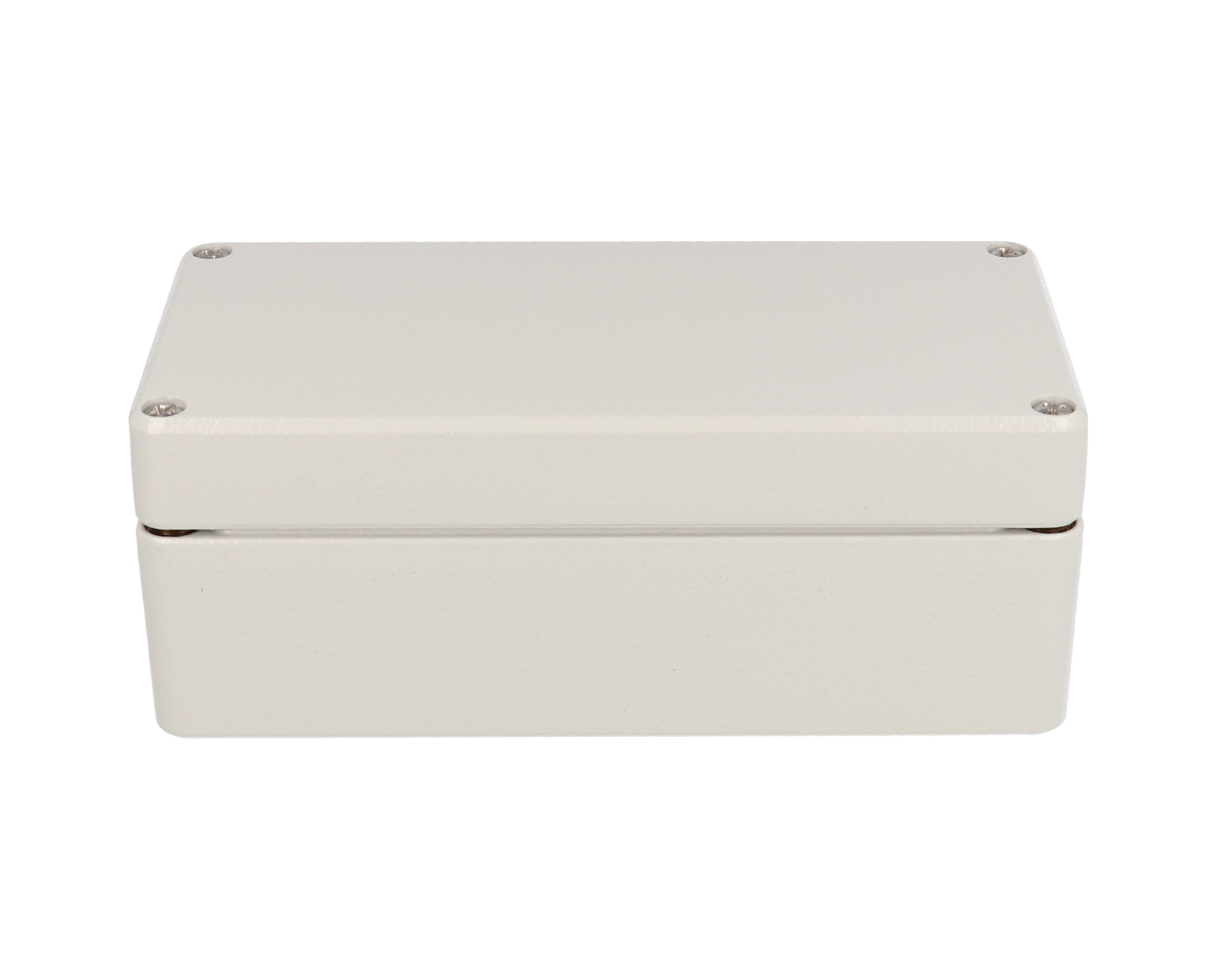

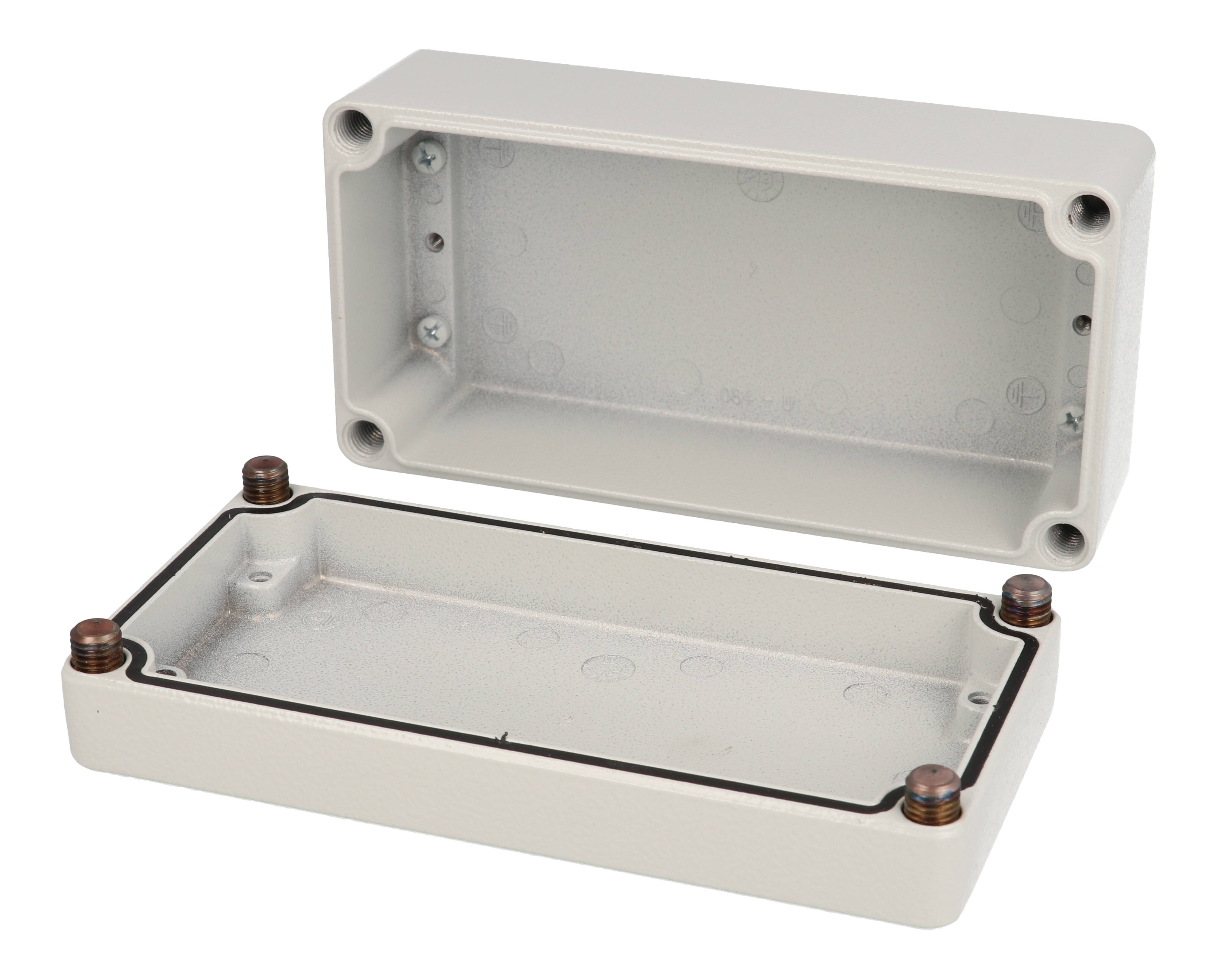

| Part Number | R100-084-035 |
| Series | Type 4X Diecast Aluminum Enclosures (R100 Serie) |
| Short Description | R100-084 RAL7035 |
| Size L x W x H |
3.15 in x 7.87 in x 2.36 in (80 mm x 200 mm x 60 mm) |
| Shipping Weight | 1 lbs (0.45 kg) |
| UNSPSC | 39121301 |
| UPC | 623980996042 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Material | Aluminum (Die-Cast Alloy) |
| Color | Light Gray |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Thick Wall, Water-Tight |
| Max. P.C. Board Length (mm) | 147.2 |
| Max. P.C. Board Width (mm) | 66.9 |
| Replacement Parts and Accessories | |
|---|---|
| R501-002-080 | hardware - external feet for R100, R101, and R102 series (External Feet) |
| R507-084-000 | hardware - formed inner panel for R100, R101, and R102 series (Inner Panel) |
