| Part Attributes | |
|---|---|

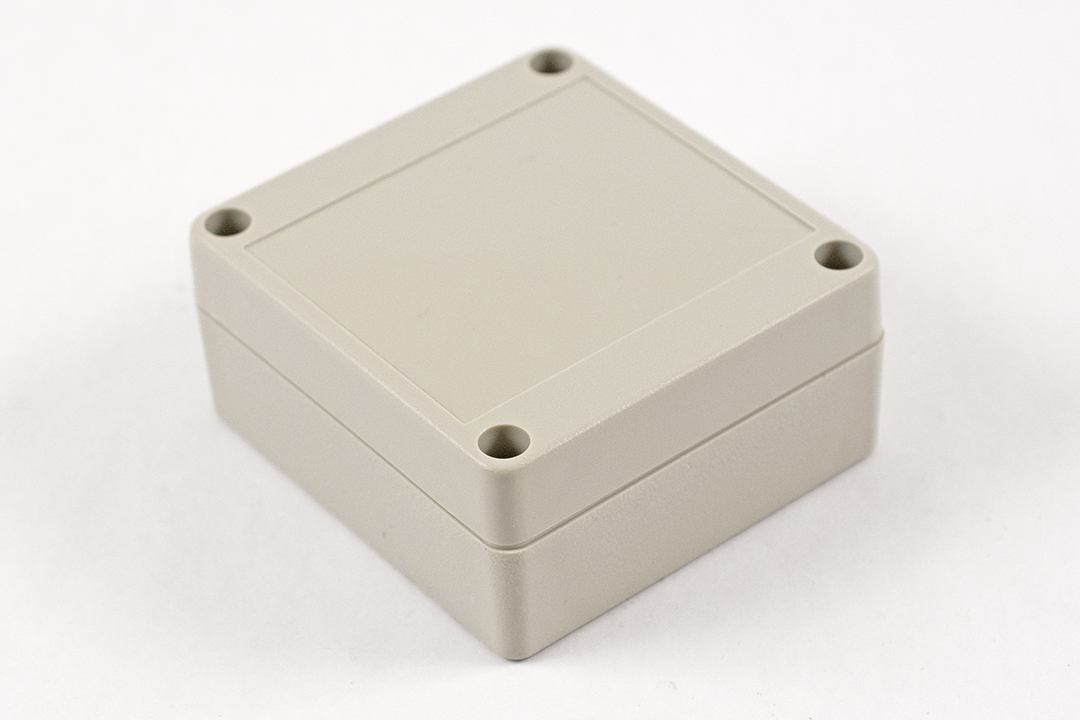

| Part Number | RP1055 |
| Series | Water-Tight ABS & Polycarbonate Enclosures (RP Series) |
| Short Description | ABS WATERTIGHT |
| Long Description | enclosure - plastic |
| Size L x W x H |
3.35 in x 3.15 in x 1.57 in (85 mm x 80 mm x 40 mm) |
| Shipping Weight | 0.22 lbs (0.10 kg) |
| UNSPSC | 39121301 |
| UPC | 623980317946 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | bag |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP65 |
| Product Category | Enclosures |
| Type | General purpose, water-tight |
| Max. P.C. Board Length (mm) | 77 |
| Max. P.C. Board Width (mm) | 72 |
| Replacement Parts and Accessories | |
|---|---|
| SC619-50 | FH M3.5-0.6 x 10 (Lid Screws) |
| SC622-50 | PN M3 x 6 SELF-TAP (PCB Screws) |
