Type 12 Mild Steel Wallmount Enclosure 1418 Series

Continuous Hinge Door with Clamps

English | Français

NOTICE of Product Transition - This series is being discontinued and will be replaced by the 1418LP Series. Availability of individual part numbers is now limited to inventory on hand. Please consult Customer Service for availability or further information.

Application

  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • Provides a degree of protection from falling dirt, dust, oil and water.

Standards

  • UL 508A Type 12 and 13
  • CSA Type 12 and 13
  • Complies with
    • NEMA Type 12 and 13
    • IEC 60529, IP54

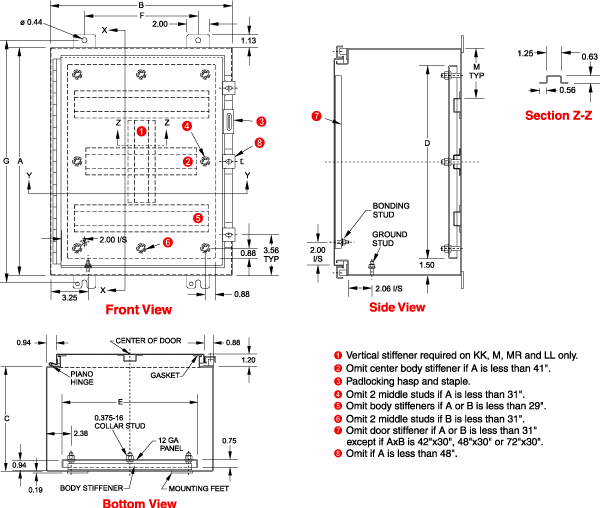

Construction

  • Formed 14 gauge steel bodies and doors.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Door and body stiffeners are provided in the larger enclosures for extra rigidity.
    Welded brackets provide for enclosure mounting.
  • Formed lip on door and enclosure exclude flowing liquids and contaminants.
  • Continuously hinged door may be removed by pulling the hinge pin.
  • Door is secured with easily operated stainless steel clamps.
  • Provision for padlocking.
  • Oil resistant gaskets are permanently secured.
  • A removable 12 gauge inner panel is included.
  • Collar studs are provided for mounting inner panels.
  • A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
  • A literature pocket is provided for the inside of the door.

Finish

  • Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating on the inside and outside.
  • Removable inner panel is finished in white powder coating.

Accessories

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch. Switch units to: mm

Enclosure Panel
Part No. H W D H W
1418A6 12.00 24.00 6.00 9.00 21.00
1418B6 16.00 12.00 6.00 13.00 9.00
1418G6 16.00 16.00 6.00 13.00 13.00
1418CR6 16.00 20.00 6.00 13.00 17.00
1418CA6 20.00 12.00 6.00 17.00 9.00
1418C6 20.00 16.00 6.00 17.00 13.00
1418D6 20.00 20.00 6.00 17.00 17.00
1418ER6 20.00 24.00 6.00 17.00 21.00
1418AR6 24.00 12.00 6.00 21.00 9.00
1418H6 24.00 16.00 6.00 21.00 13.00
1418E6 24.00 20.00 6.00 21.00 17.00
1418J6 24.00 24.00 6.00 21.00 21.00
1418FG6 30.00 16.00 6.00 27.00 13.00
1418F6 30.00 20.00 6.00 27.00 17.00
1418K6 30.00 24.00 6.00 27.00 21.00
1418L6 36.00 24.00 6.00 33.00 21.00
1418M6 36.00 30.00 6.00 33.00 27.00
1418A8 12.00 24.00 8.00 9.00 21.00
1418B8 16.00 12.00 8.00 13.00 9.00
1418G8 16.00 16.00 8.00 13.00 13.00
1418CR8 16.00 20.00 8.00 13.00 17.00
1418CA8 20.00 12.00 8.00 17.00 9.00
1418C8 20.00 16.00 8.00 17.00 13.00
1418D8 20.00 20.00 8.00 17.00 17.00
1418ER8 20.00 24.00 8.00 17.00 21.00
1418AR8 24.00 12.00 8.00 21.00 9.00
1418H8 24.00 16.00 8.00 21.00 13.00
1418E8 24.00 20.00 8.00 21.00 17.00
1418J8 24.00 24.00 8.00 21.00 21.00
1418KR8 24.00 30.00 8.00 21.00 27.00
1418KA8 30.00 12.00 8.00 27.00 9.00
1418KG8 30.00 16.00 8.00 27.00 13.00
1418F8 30.00 20.00 8.00 27.00 17.00
1418K8 30.00 24.00 8.00 27.00 21.00
1418KK8 30.00 30.00 8.00 27.00 27.00
1418MR8 30.00 36.00 8.00 27.00 33.00
1418L8 36.00 24.00 8.00 33.00 21.00
1418M8 36.00 30.00 8.00 33.00 27.00
1418LL8 36.00 36.00 8.00 33.00 33.00
1418N8 42.00 24.00 8.00 39.00 21.00
1418O8 42.00 30.00 8.00 39.00 27.00
1418P8 42.00 36.00 8.00 39.00 33.00
1418Q8 48.00 24.00 8.00 45.00 21.00
1418R8 48.00 30.00 8.00 45.00 27.00
1418S8 48.00 36.00 8.00 45.00 33.00
1418T8 60.00 36.00 8.00 57.00 33.00
1418B10 16.00 12.00 10.00 13.00 9.00
1418C10 20.00 16.00 10.00 17.00 13.00
1418D10 20.00 20.00 10.00 17.00 17.00
1418AR10 24.00 12.00 10.00 21.00 9.00
1418E10 24.00 20.00 10.00 21.00 17.00
1418J10 24.00 24.00 10.00 21.00 21.00
1418F10 30.00 20.00 10.00 27.00 17.00
1418K10 30.00 24.00 10.00 27.00 21.00
1418L10 36.00 24.00 10.00 33.00 21.00
1418M10 36.00 30.00 10.00 33.00 27.00
1418O10 42.00 30.00 10.00 39.00 27.00
1418P10 42.00 36.00 10.00 39.00 33.00
1418R10 48.00 30.00 10.00 45.00 27.00
1418S10 48.00 36.00 10.00 45.00 33.00
1418T10 60.00 36.00 10.00 57.00 33.00
1418C12 20.00 16.00 12.00 17.00 13.00
1418E12 24.00 20.00 12.00 21.00 17.00
1418J12 24.00 24.00 12.00 21.00 21.00
1418K12 30.00 24.00 12.00 27.00 21.00
1418KK12 30.00 30.00 12.00 27.00 27.00
1418L12 36.00 24.00 12.00 33.00 21.00
1418M12 36.00 30.00 12.00 33.00 27.00
1418LL12 36.00 36.00 12.00 33.00 33.00
1418O12 42.00 30.00 12.00 39.00 27.00
1418P12 42.00 36.00 12.00 39.00 33.00
1418S12 48.00 36.00 12.00 45.00 33.00
1418T12 60.00 36.00 12.00 57.00 33.00
1418U12 72.00 30.00 12.00 69.00 27.00
1418V12 72.00 36.00 12.00 69.00 33.00
1418E16 24.00 20.00 16.00 21.00 17.00
1418J16 24.00 24.00 16.00 21.00 21.00
1418K16 30.00 24.00 16.00 27.00 21.00
1418M16 36.00 30.00 16.00 33.00 27.00
1418P16 42.00 36.00 16.00 39.00 33.00
1418S16 48.00 36.00 16.00 45.00 33.00
1418T16 60.00 36.00 16.00 57.00 33.00
1418U16 72.00 30.00 16.00 69.00 27.00
1418K20 30.00 24.00 20.00 27.00 21.00
1418M20 36.00 30.00 20.00 33.00 27.00
1418S20 48.00 36.00 20.00 45.00 33.00
1418T20 60.00 36.00 20.00 57.00 33.00
1418U20 72.00 30.00 20.00 69.00 27.00
1418K24 30.00 24.00 24.00 27.00 21.00
1418U24 72.00 30.00 24.00 69.00 27.00
