| Part Attributes | |
|---|---|
| Part Number | 1551USB3CLR |
| Series | ABS Plastic Miniature USB Enclosures (1551USB Series) |
| Short Description | USB 65 X 30 X 15.5MM ABS CLEAR |

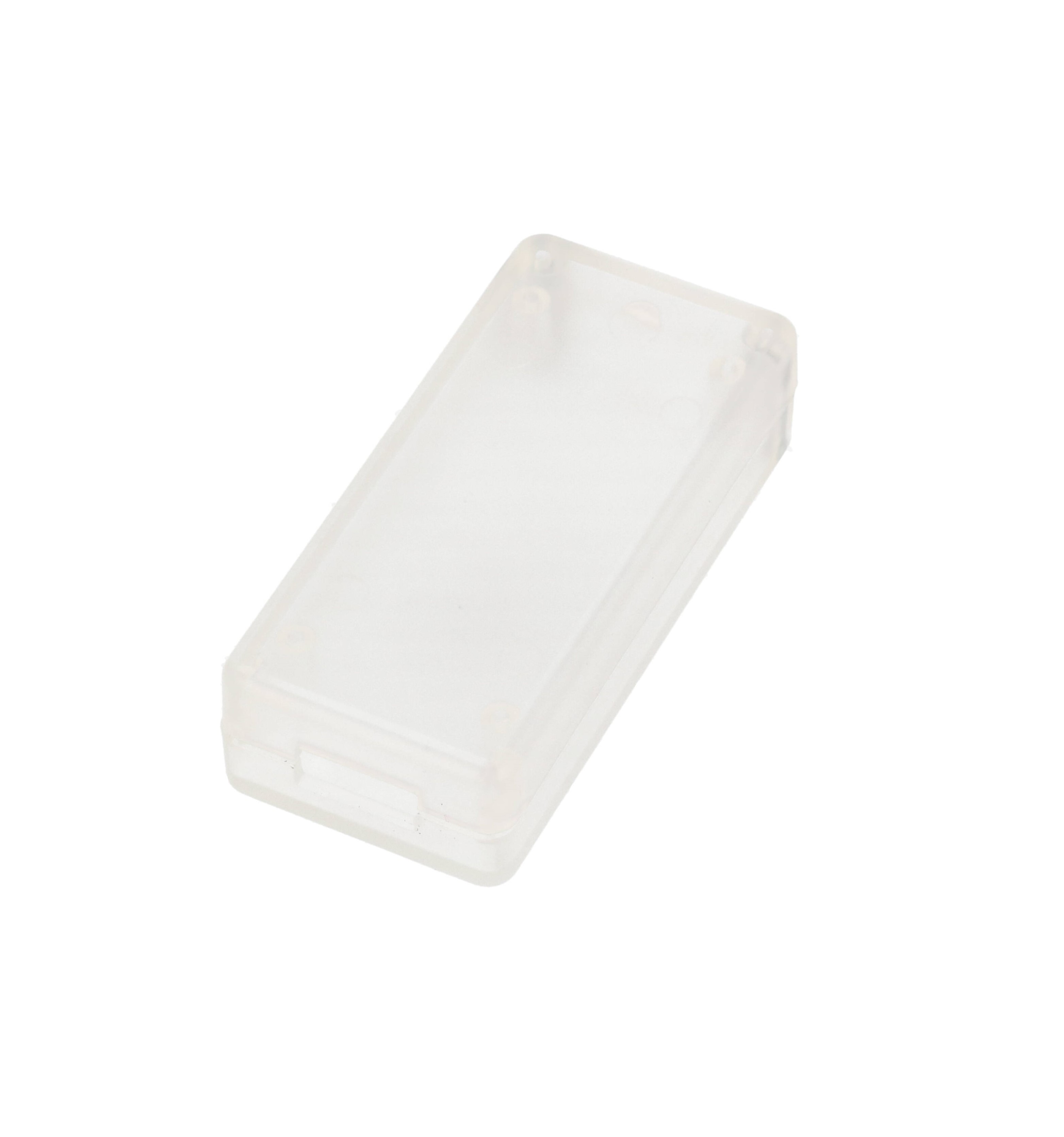

| Long Description | clear ABS plastic USB enclosure |
| Size L x W x H |
2.56 in x 1.18 in x 0.61 in (65 mm x 30 mm x 15 mm) |
| Shipping Weight | 0.03 lbs (0.01 kg) |
| UNSPSC | 39121301 |
| UPC | 623980562650 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | bag |
| Material | ABS Plastic |
| Color | Trans. Clear |
| Flame Rating | UL94 HB |
| IP Rating | IP51 |
| Product Category | Enclosures |
| Type | Miniature, USB |
| Max. P.C. Board Length (mm) | 25.5 |
| Max. P.C. Board Width (mm) | 59 |
| Replacement Parts and Accessories | |
|---|---|
| 1551USB50 | replacement screws, #2 x 1/2" FH-B, 50-pack (Lid Screws) |
| 1553WTS100 | 100-pack of screws, #2x3/16 plastite P.C. board mounting, zinc plated steel (PCB Screws) |
