| Part Attributes | |
|---|---|

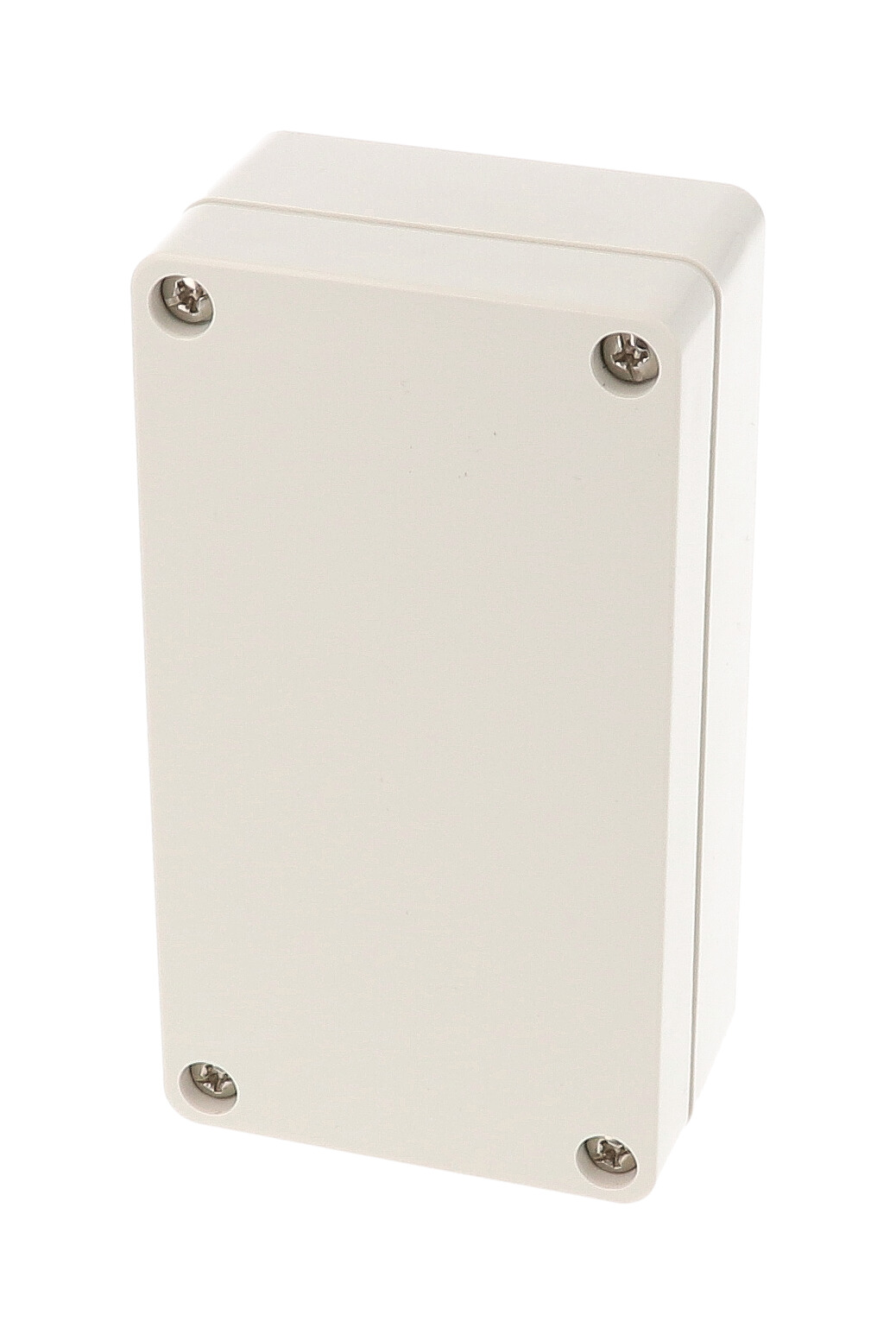

| Part Number | 1554CGY |
| Series | Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures (1554 Series) |
| Short Description | 120X65X40 ABS NEMA ENCL |
| Long Description | RAL7035 grey ABS plastic watertight enclosure |
| Size L x W x H |
4.7 in x 2.6 in x 1.6 in (119 mm x 66 mm x 41 mm) |
| Shipping Weight | 0.25 lbs (0.11 kg) |
| UNSPSC | 39121301 |
| UPC | 623980303857 |
| UL File # | E65324 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Water-tight |
| Max. P.C. Board Length (mm) | 52.83 |
| Max. P.C. Board Width (mm) | 110.49 |
| Replacement Parts and Accessories | |
|---|---|
| 1554CGASKET | replacement gaskets for 1554 series, 2-pack (Replacement Gasket) |
| 1554CPL | galvanized steel inner panel for 1554/55 C & D (Inner Panel) |
| 1554FT | set of 4 polycarb plastic mounting feet (Mounting Feet) |
| SC576-50 | M4 x 20 panhead screw - 50 pack (Lid Screws) |
