Part Number: 1554EE2GYSL

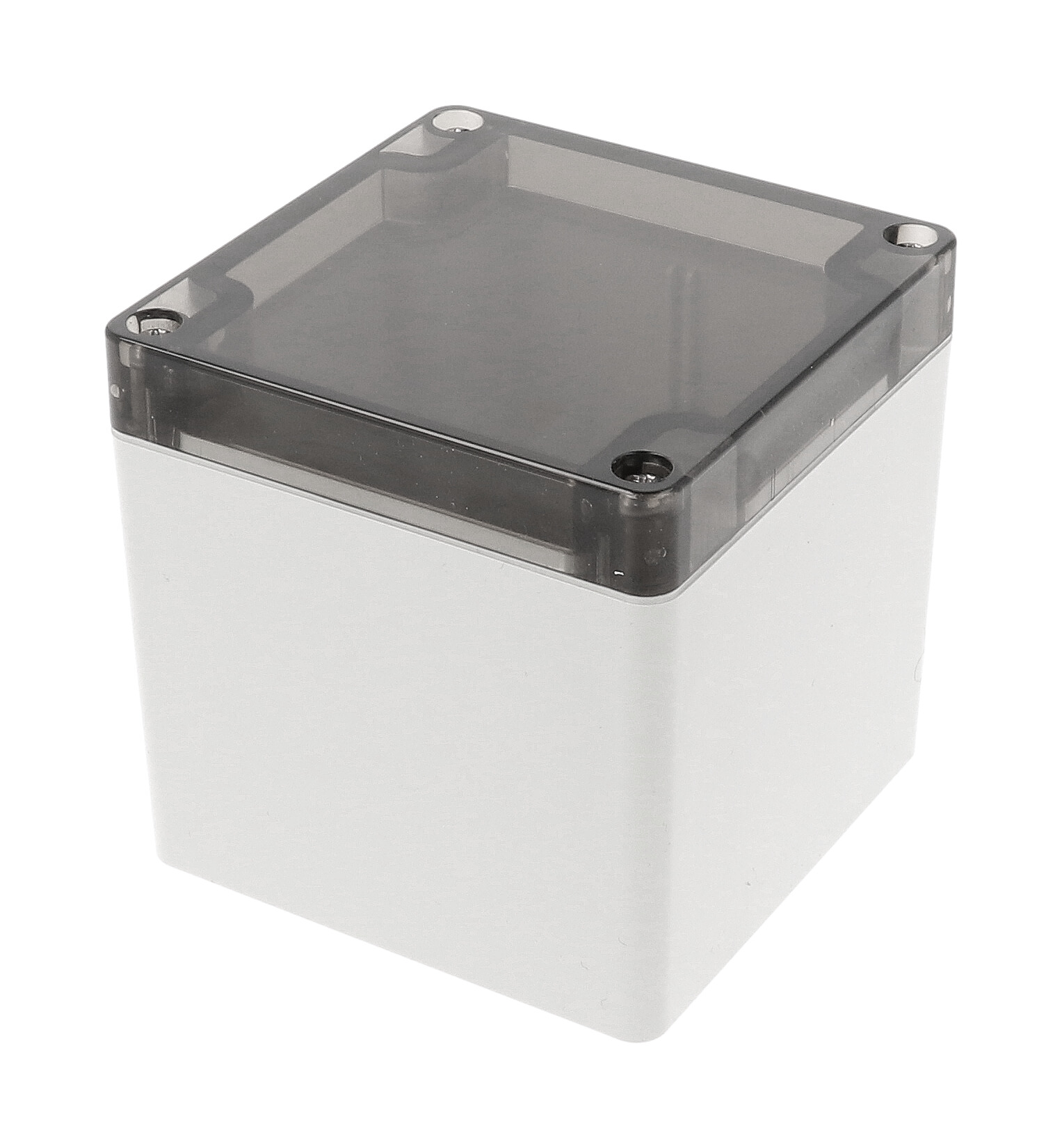

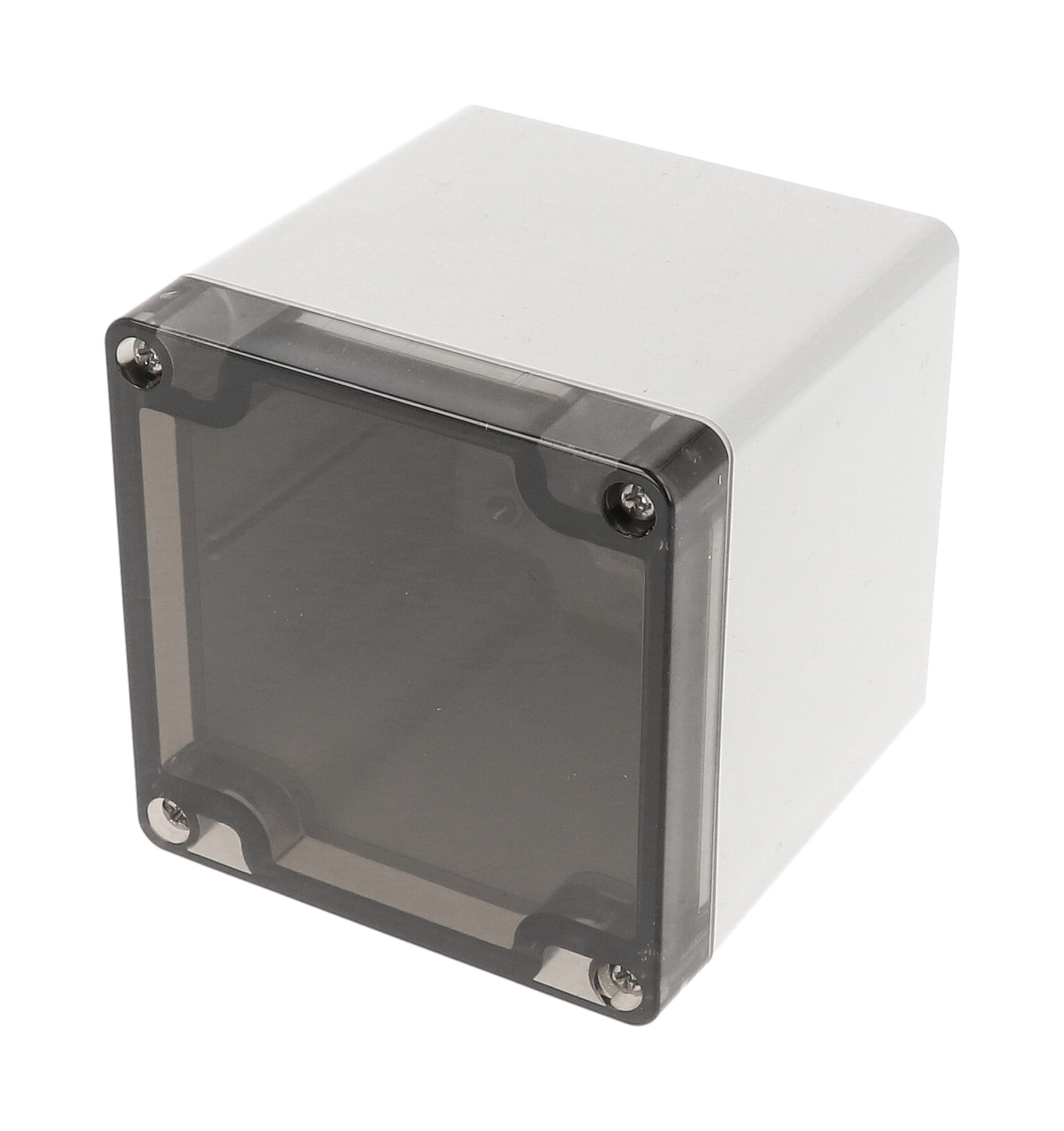

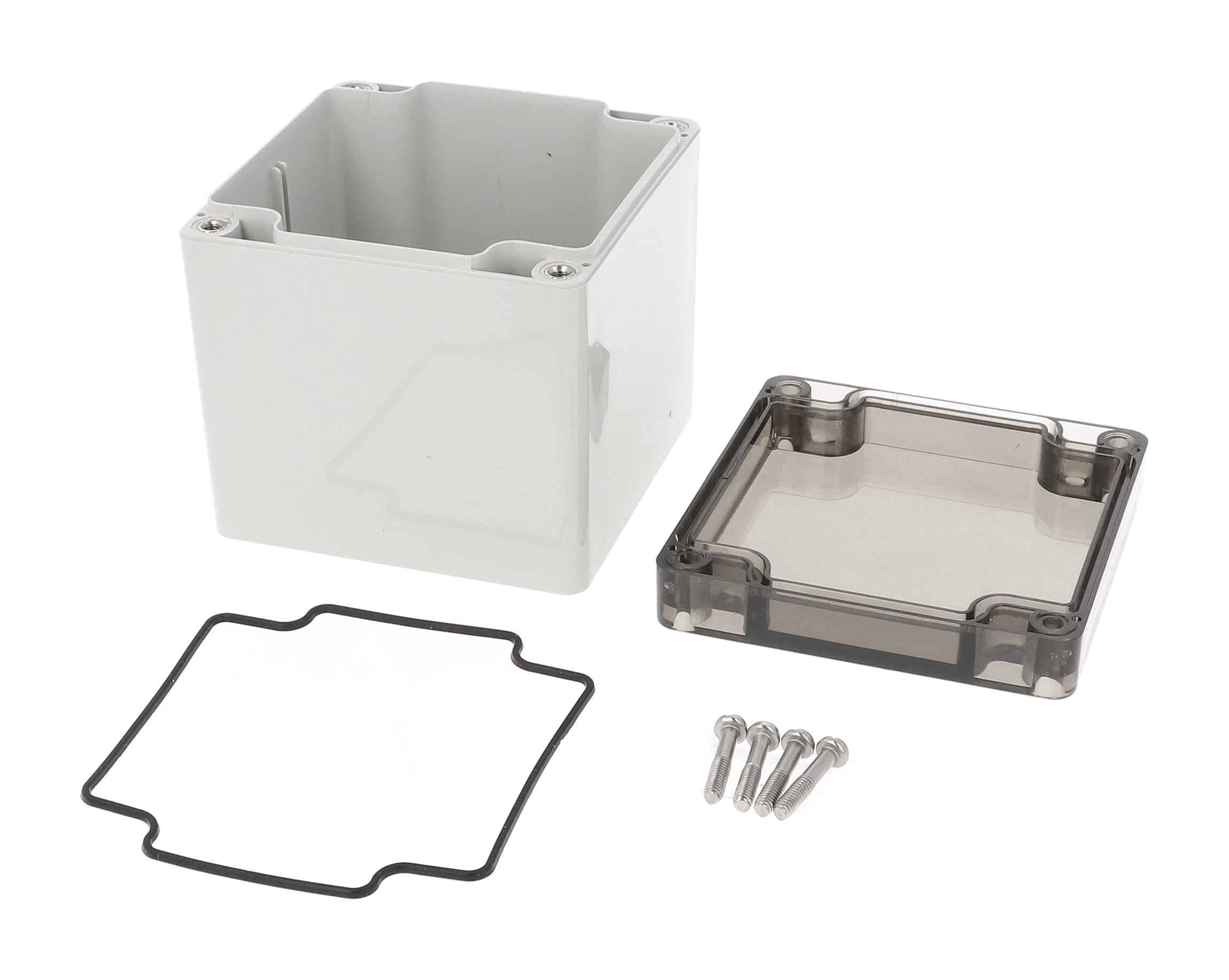

Product Image 1554EE2GYSL image
Description RAL7035 grey ABS plastic watertight enclosure

View Product Specification Page

View distributor stock/pricing details...
Downloads
(Click to download)
Download 3D Parasolid (x_t) Download 3D STEP Download 2D DXF Download PDF
This part may be eligible for factory modifications!
Size L x W x H 3.5 in x 3.5 in x 3.5 in
(89 mm x 89 mm x 89 mm)
Shipping Weight 0.35 lbs (0.16 kg)
UNSPSC 39121301
UPC 623980401744
UL File # E65324
REACH Compliant Yes (more info...)
RoHS Compliant Yes (more info...)
Packaging Type shrink wrap
Material Polycarbonate
Color Light Gray
Flame Rating UL94 V-0
IP Rating IP68
Product Category Enclosures
Type Water-tight
NEMA Rating 4, 4X, 6, 6P, 12 & 13
Max. P.C. Board Length (mm) 77.47
Max. P.C. Board Width (mm) 78.41
