| Part Attributes | |
|---|---|

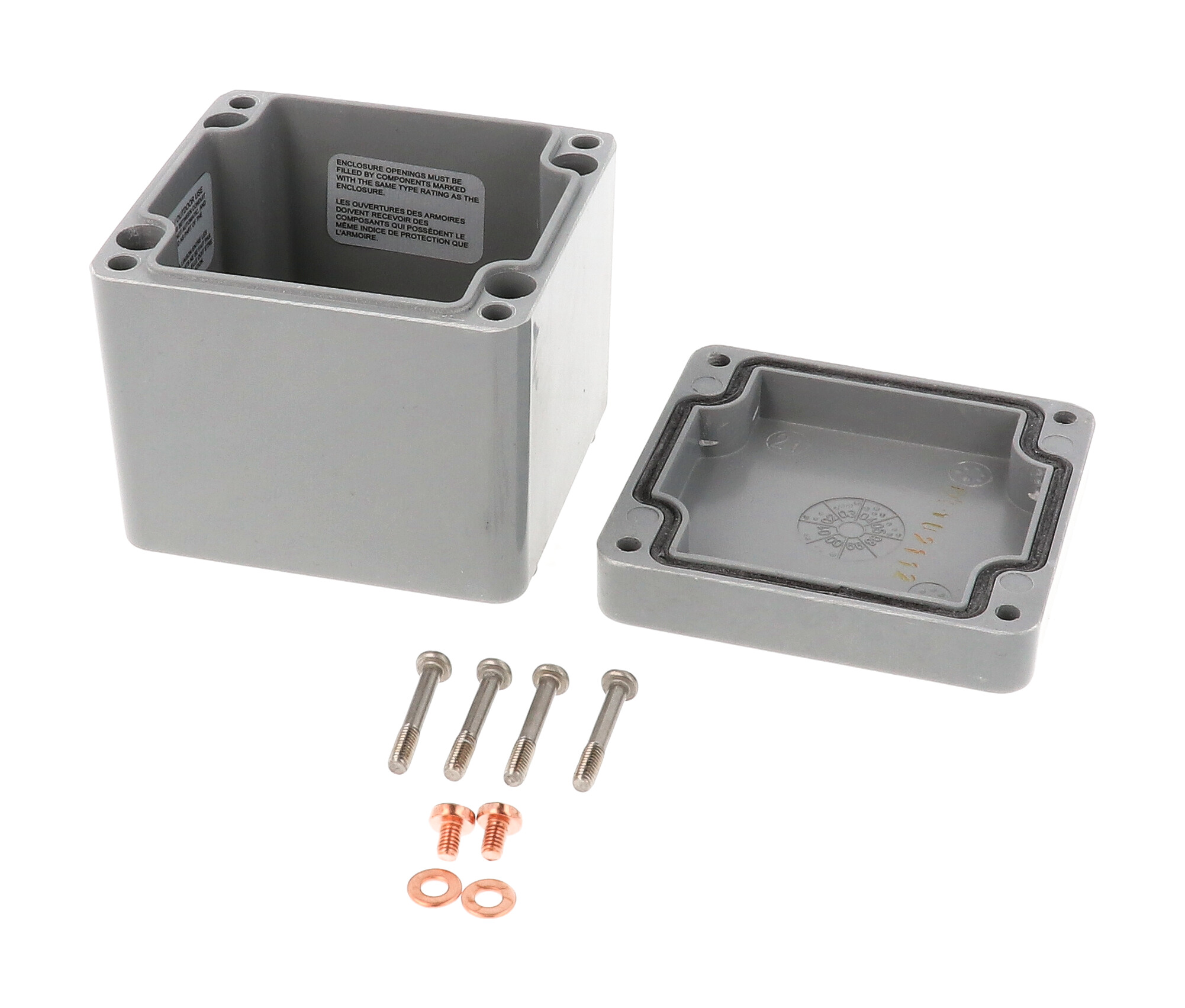

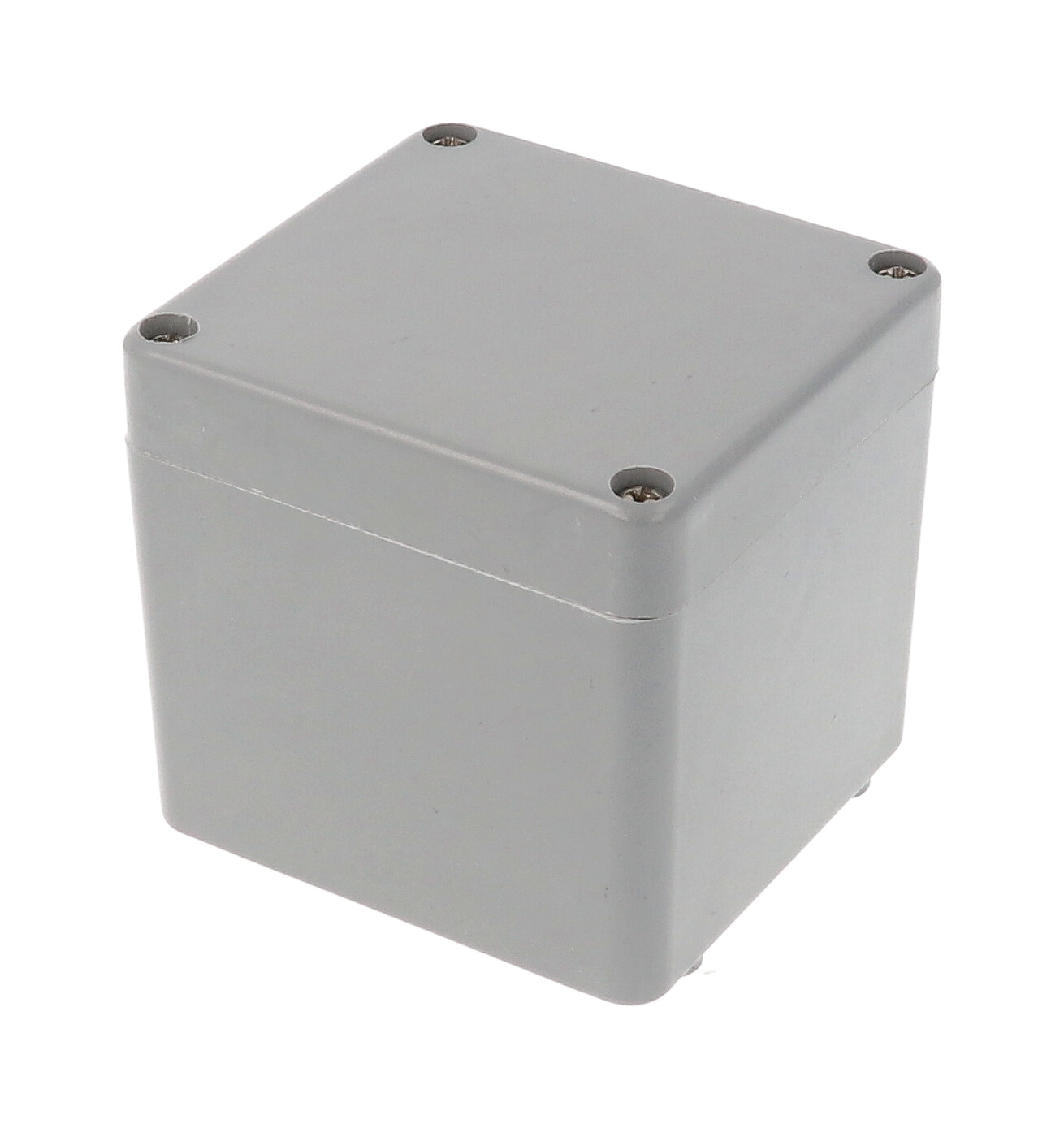

| Part Number | 1590ZGRP084 |
| Series | Type 4, 4X Glass Reinforced Polyester Enclosures (1590ZGRP Series) |
| Short Description | 80 X 75 X 75MM FIBERGLASS BOX |
| Long Description | enclosure - fiberglass |
| Size L x W x H |
3.17 in x 2.97 in x 2.95 in (81 mm x 75 mm x 75 mm) |
| Shipping Weight | 0.6 lbs (0.27 kg) |
| UNSPSC | 39121301 |
| UPC | 623980402772 |
| UL File # | E65324 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | Fiberglass Polyester |
| Color | Gray |
| Flame Rating | UL94 V-0 |
| IP Rating | IP66 |
| Product Category | Enclosures |
| Type | Thick wall, water-tight |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Max. P.C. Board Length (mm) | 68 |
| Max. P.C. Board Width (mm) | 63 |
| Replacement Parts and Accessories | |
|---|---|
| 1590ZGRP081PL | inner mounting panel for 1590ZGRP081 enclosures (Inner Panel) |
| PMB4045KIT1 | 7" pole mount kit for series 1554, 1555, 1555F, 1590Z, and 1590ZGRP (Pole Mount Kit 7") |
| PMB4045KIT2 | 15" pole mount kit for series 1554, 1555, 1555F, 1590Z, and 1590ZGRP (Pole Mount Kit 15") |
| SC583-50 | replacement screws for 1554 series - M4 x 25 panhead screw - 50 pack (Lid Screws) |
| SCGM4-50 | M4 GROUND SCREW KIT- 50 pack (Panel Screws) |
