| Part Attributes | |
|---|---|
| Part Number | 1599KSTLGY |

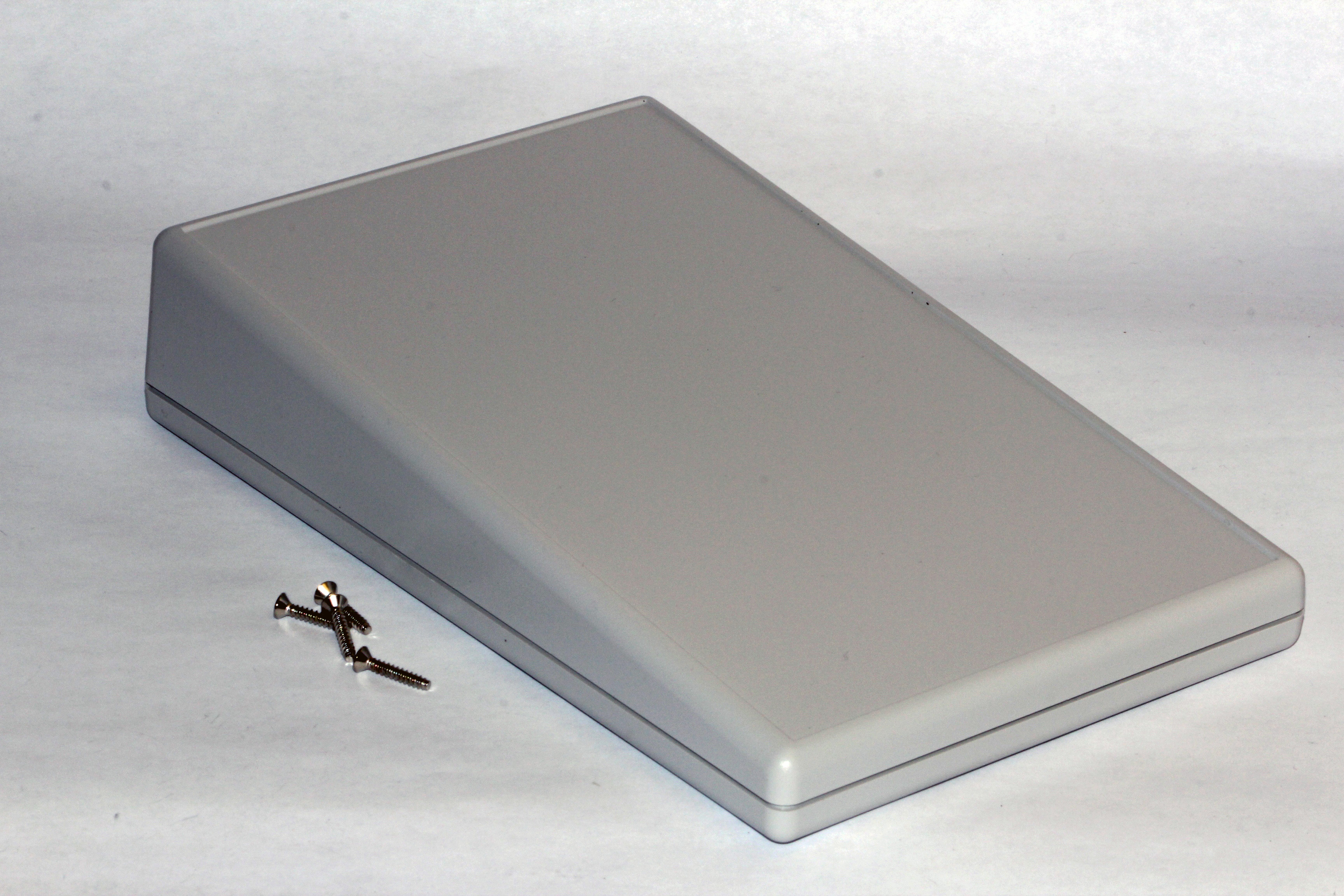

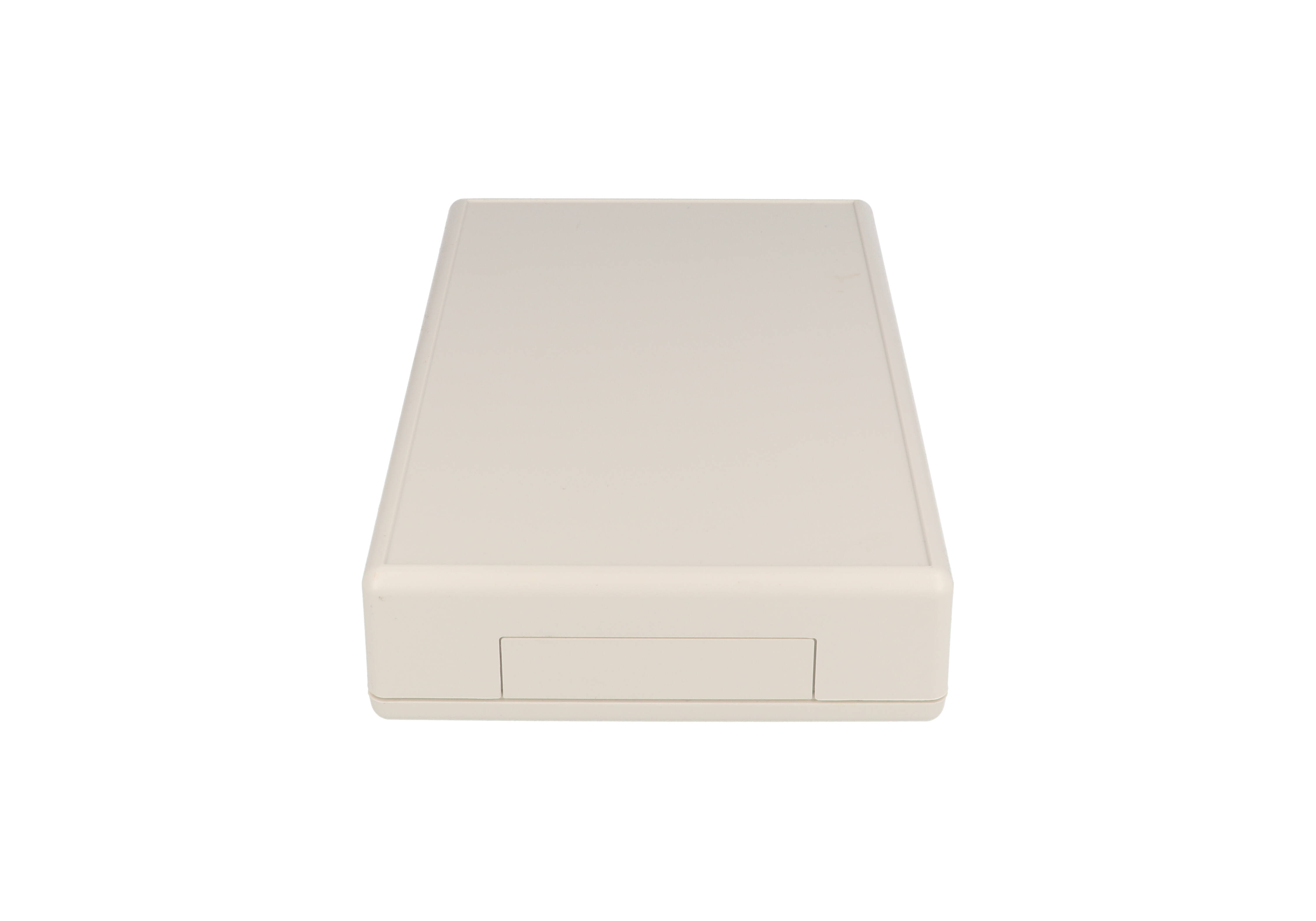

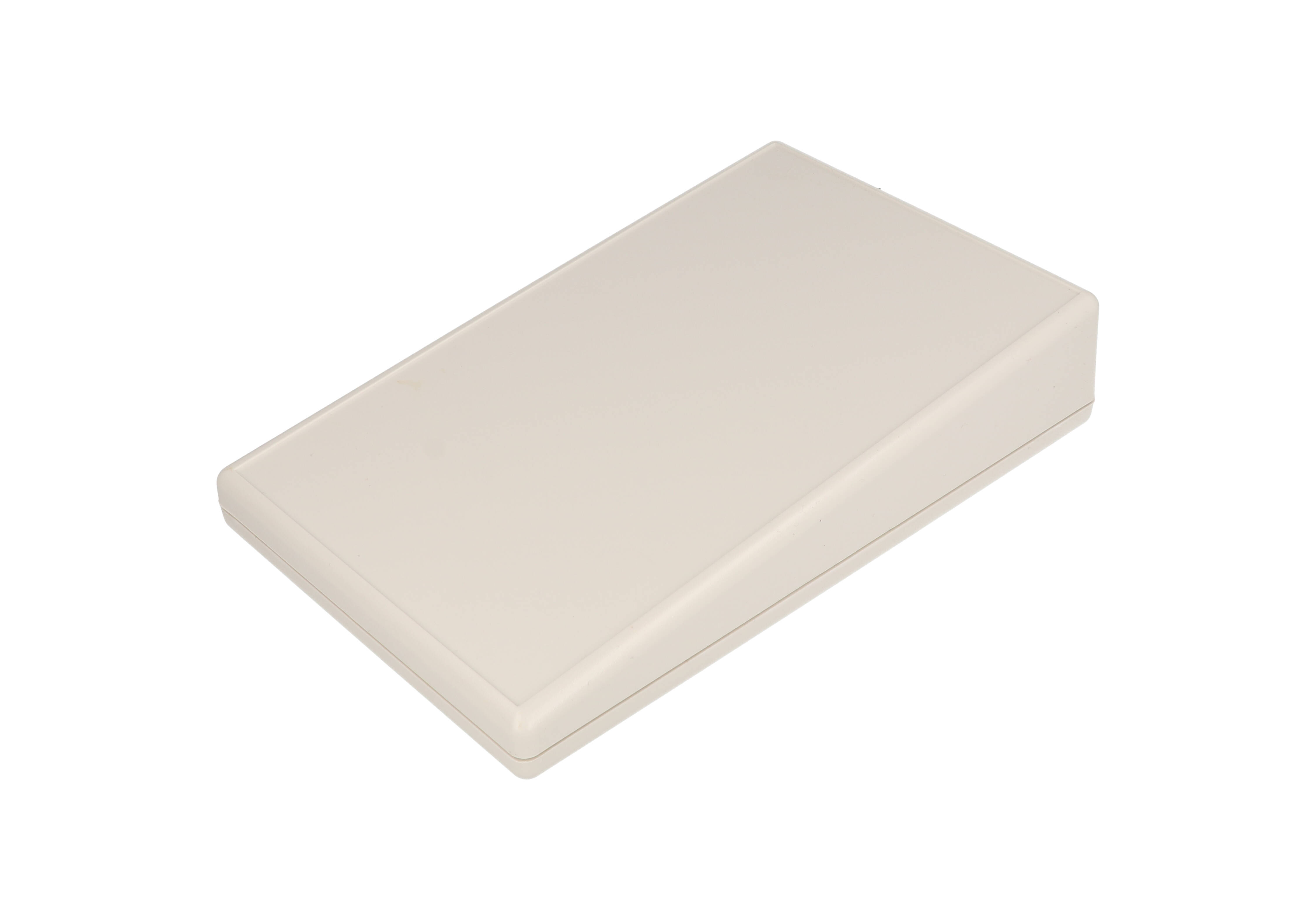

| Series | ABS Plastic Sloping Consoles (1599T Series) |
| Short Description | PLASTIC BOX |
| Long Description | enclosure - plastic |
| Size L x W x H |
8.66 in x 5.5 in x 1.6 in (220 mm x 140 mm x 41 mm) |
| Shipping Weight | 0.5 lbs (0.23 kg) |
| UNSPSC | 39121301 |
| UPC | 623980998800 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Sloped Console |
| Max. P.C. Board Length (mm) | 131 |
| Max. P.C. Board Width (mm) | 211 |

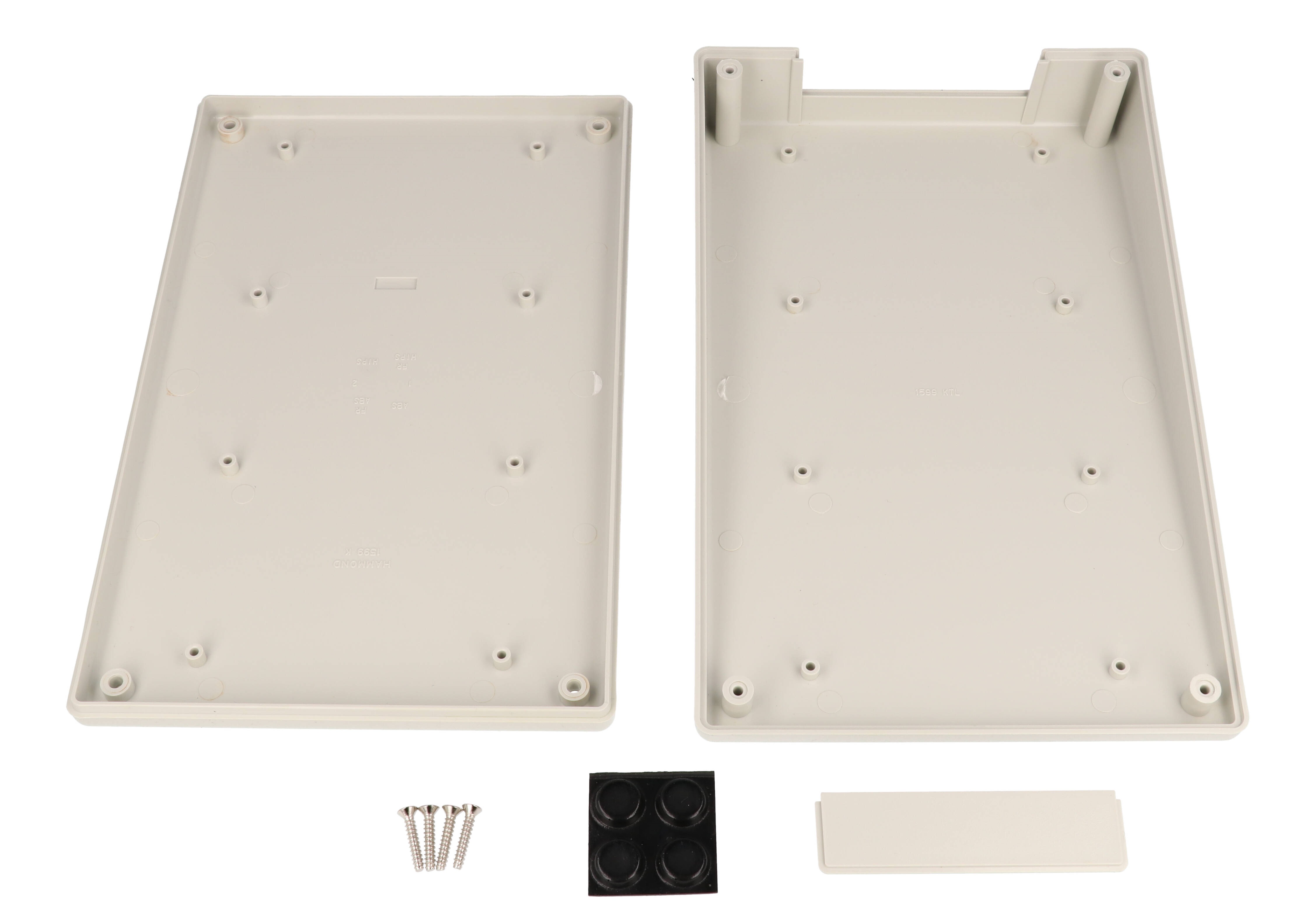

| Replacement Parts and Accessories | |
|---|---|
| 1421T2 | PKG OF 24 ROUND RUBBER FEET (Rubber Feet) |
| 1593ATS50 | hardware - PC board screws for 1593, 1599, 1591XX enclosures (PCB Screws) |
| 1593MS100 | replacement screws for 1593 series enclosures, 100-pack (Assembly Screws) |
