Type 12 Mild Steel Modular Freestanding PC Enclosure IPC Series

3 Section Cabinet with Hinged Doors

English | Français

Note: This product line has been discontinued as a stocked series. Information is for reference only. For alternative solution assistance, please contact Hammond here or call: USA (716) 630-7030, Canada and International (519) 822-2960.

Application

  • The IPC product line provides users with a rugged housing for industrial control, operator interface and computer equipment in harsh industrial environments.
  • Modular design permits joining of units for large scale and mixed use applications.
  • Increasingly, PC technology is utilized on the factory floor. The PC enclosure provides a secure housing for standard PC components.
  • A broad range of industry standard sizes are offered. Units are constructed to imperial dimensions and hardware sizes, with metric sizing provided for convenient reference.

Standards

  • UL 508A Type 12
  • CSA Type 12
  • Complies with
    • NEMA Type 12
    • IEC 60529 IP54

Construction

  • Frame with integral solid top
  • Provision for lifting eyebolts (included)
  • 4 internal mounting rails
  • Removable bottom panel
  • Top window or solid door with key locking handle
  • Monitor shelf (window door version)
  • Drop down keyboard door with locking handle
  • Self contained keyboard compartment
  • Pull-out keyboard shelf with left/right mouse tray
  • Solid bottom door with key locking handle
  • Solid full-height rear door with key locking handle
  • Pair of solid side panels

Finish

  • Formed 14 gauge steel.
  • Frame features welded corner reinforcements
  • Oil resistance gaskets are permanently secured on all openings
  • Frames are easily joined together with an optional joining kit
  • Doors can be easily removed
  • Formed 16 gauge steel side panels are recessed to fit flush with the sides of the cabinet
  • Bonding and grounding studs are provided for all doors and handles

Accessories

Gallery Image

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Keyboard Dimensions

Units shown: mm. Switch units to: inch

EnclosureWidth Maximum
(mm) Keyboard Width
700 508
800 610

Units shown: mm. Switch units to: inch

Window Door Solid Door Nominal Dimensions Overall Dimensions Ship Wt.
Part No. Part No. A x B x C (mm) A B C D E F H K N lbs

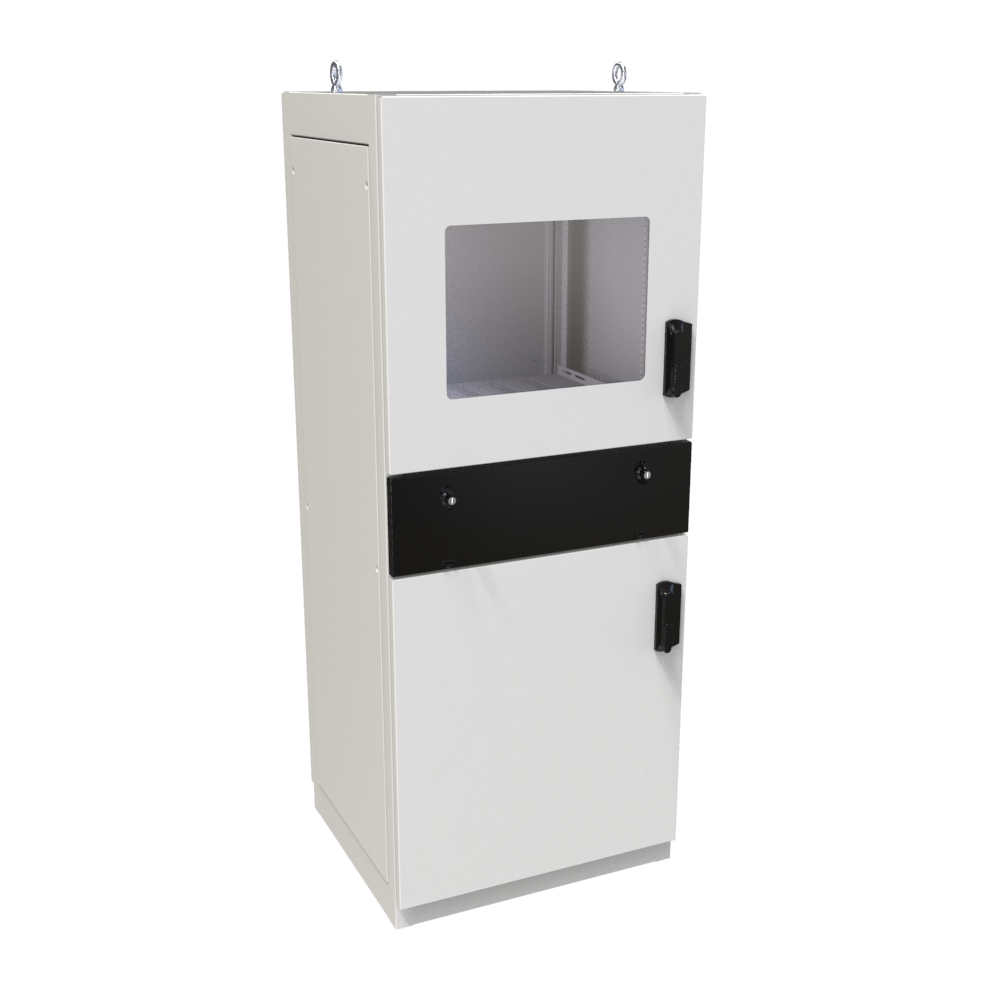

IPC1676 IPC1676ST 1600 x 700 x 600 1786 711 600 677 432 267 579 457 1372 340

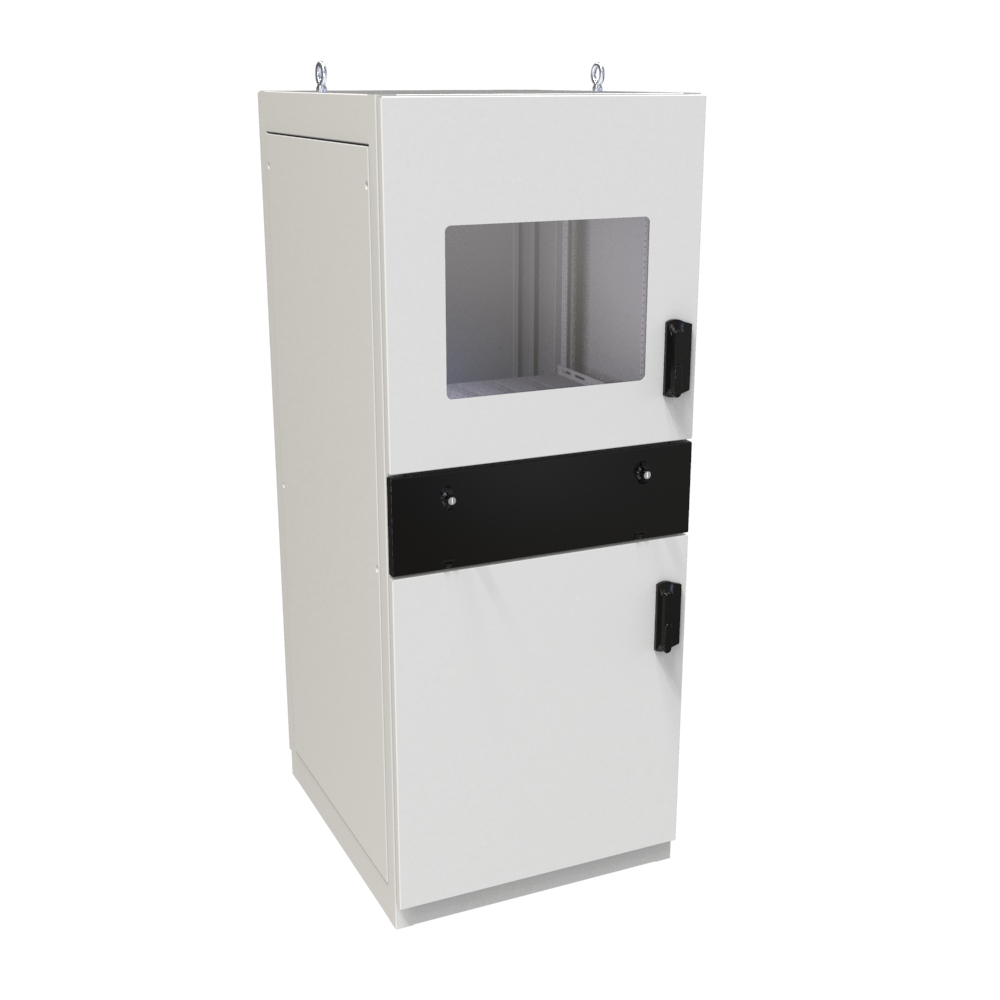

IPC1678 IPC1678ST 1600 x 700 x 800 1786 711 800 677 432 445 579 457 1372 355
IPC1686 IPC1686ST 1600 x 800 x 600 1786 800 600 677 610 445 668 559 1372 350

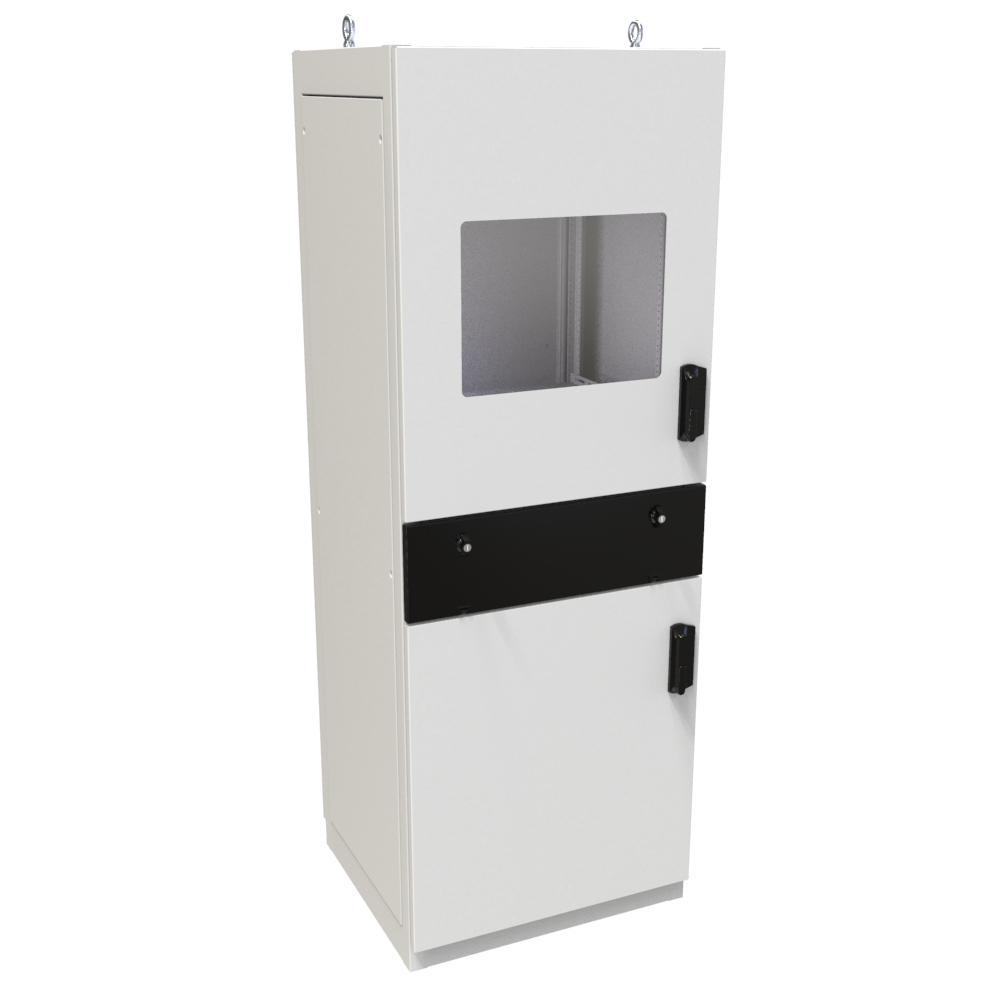

IPC1876 IPC1876ST 1800 x 700 x 600 1964 711 600 855 432 267 579 457 1473 355

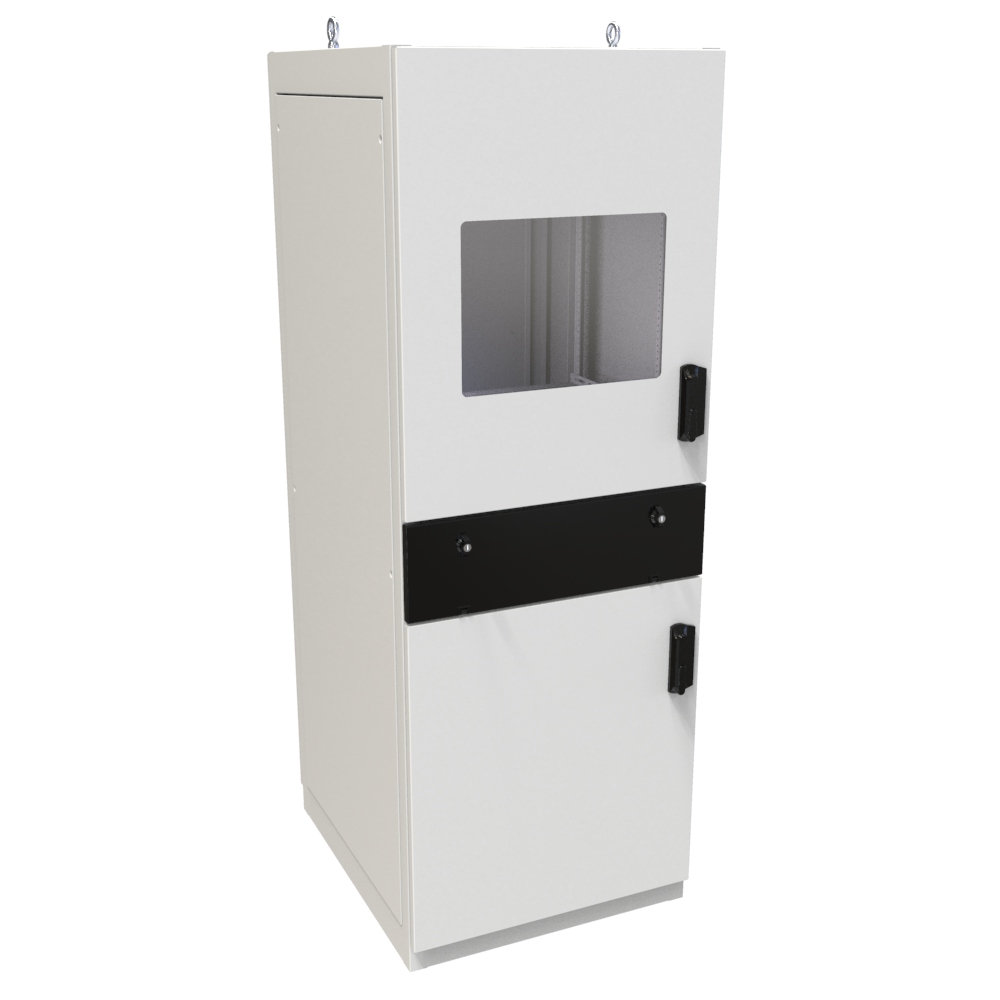

IPC1878 IPC1878ST 1800 x 700 x 800 1964 711 800 855 432 445 579 457 1473 380
IPC1886 IPC1886ST 1800 x 800 x 600 1964 800 600 855 610 267 668 559 1473 370
