Key Features:
- Designed to house PC boards for handheld use.
- Molded in light grey or black general purpose ABS plastic which carries a UL flammability rating of UL94 HB.
- Two-part, snap action clam shell construction. Both halves include a smooth recessed area for membranes, keypads, labels, and more.

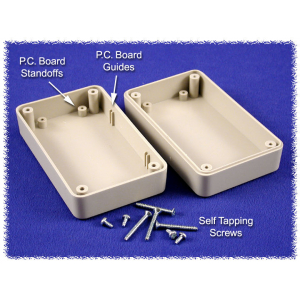

- PC board standoffs are molded into both top and bottom half of enclosure.
- Designed to meet IP54.
- Includes four M3 lid screws and four short M3 PC board screws.
- For replacement lid screws (quantity 50) order part number SC617-50.
- For replacement PC board screws (quantity 50) order part number SC622-50.
Click to enlarge features.
Bottom View

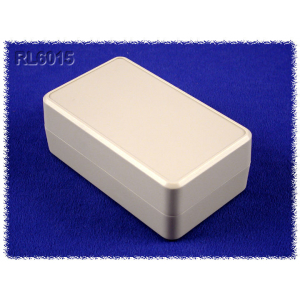

Top View
Detalles de la pieza
Haga clic en Número de pieza, más abajo, para obtener más detalles (por ejemplo, dibujos del producto, instrucciones de montaje, peso de envío).
| Part Number | Color | Length (mm) | Width (mm) | Height (mm) | Max PCB Length (mm) | Max PCB Width (mm) |
|---|---|---|---|---|---|---|
| RL6015BK | Black | 107 | 64 | 40 | 99.81 | 56.81 |
| RL6015 | Grey | 107 | 64 | 40 | 99.81 | 56.81 |
| RL6035BK | Black | 147 | 64 | 40 | 99.81 | 56.81 |
| RL6035 | Grey | 147 | 64 | 40 | 99.81 | 56.81 |
| RL6055BK | Black | 180 | 106 | 40 | 170.98 | 96.58 |
| RL6055 | Grey | 180 | 106 | 40 | 170.98 | 96.58 |

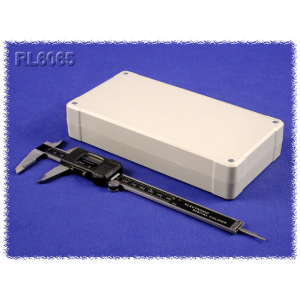

| RL6065BK | Black | 206 | 106 | 40 | 197.4 | 97.4 |
| RL6065 | Grey | 206 | 106 | 40 | 197.4 | 97.4 |
