| Part Attributes | |
|---|---|
| Part Number | 1455KHD1601 |

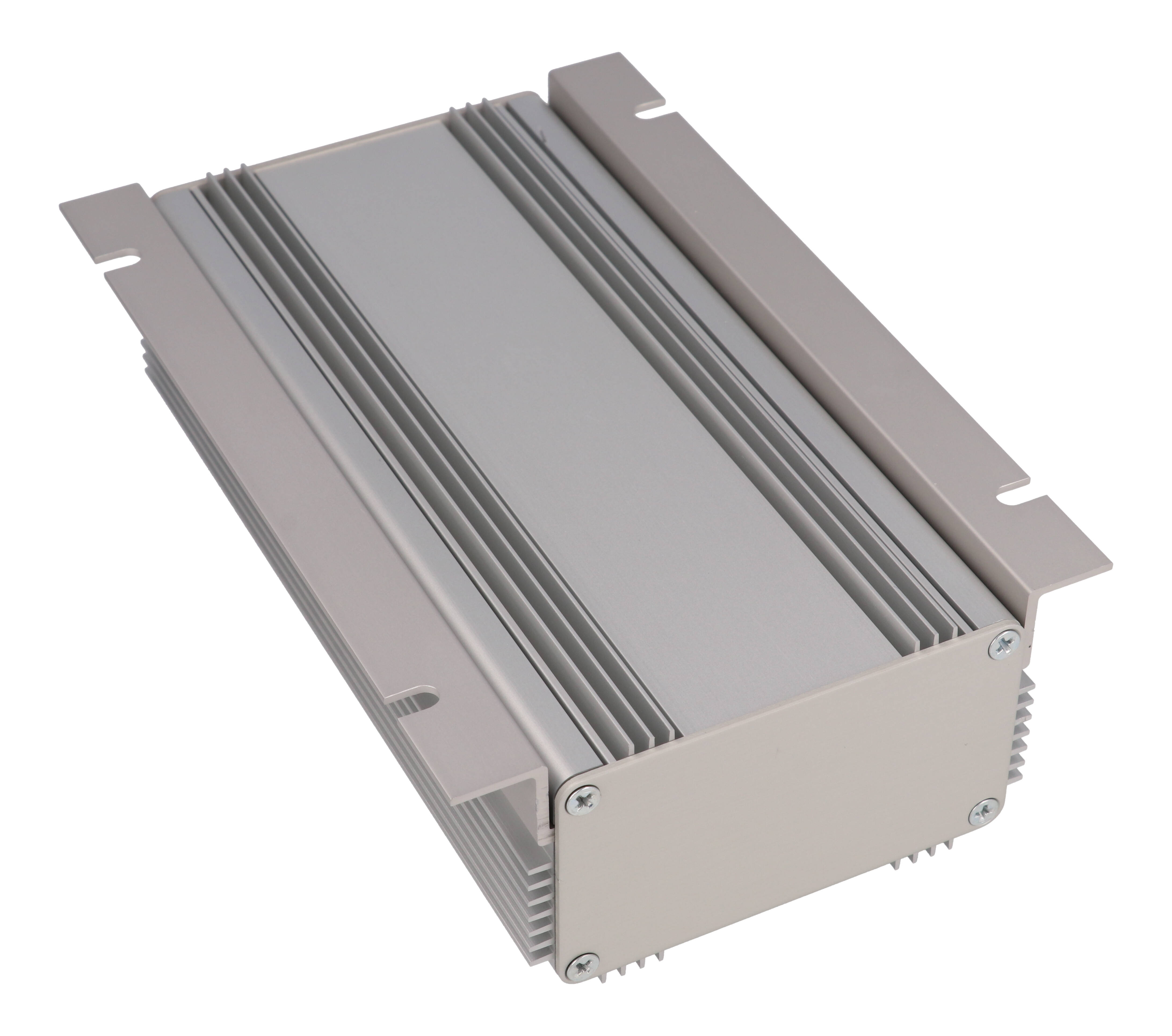

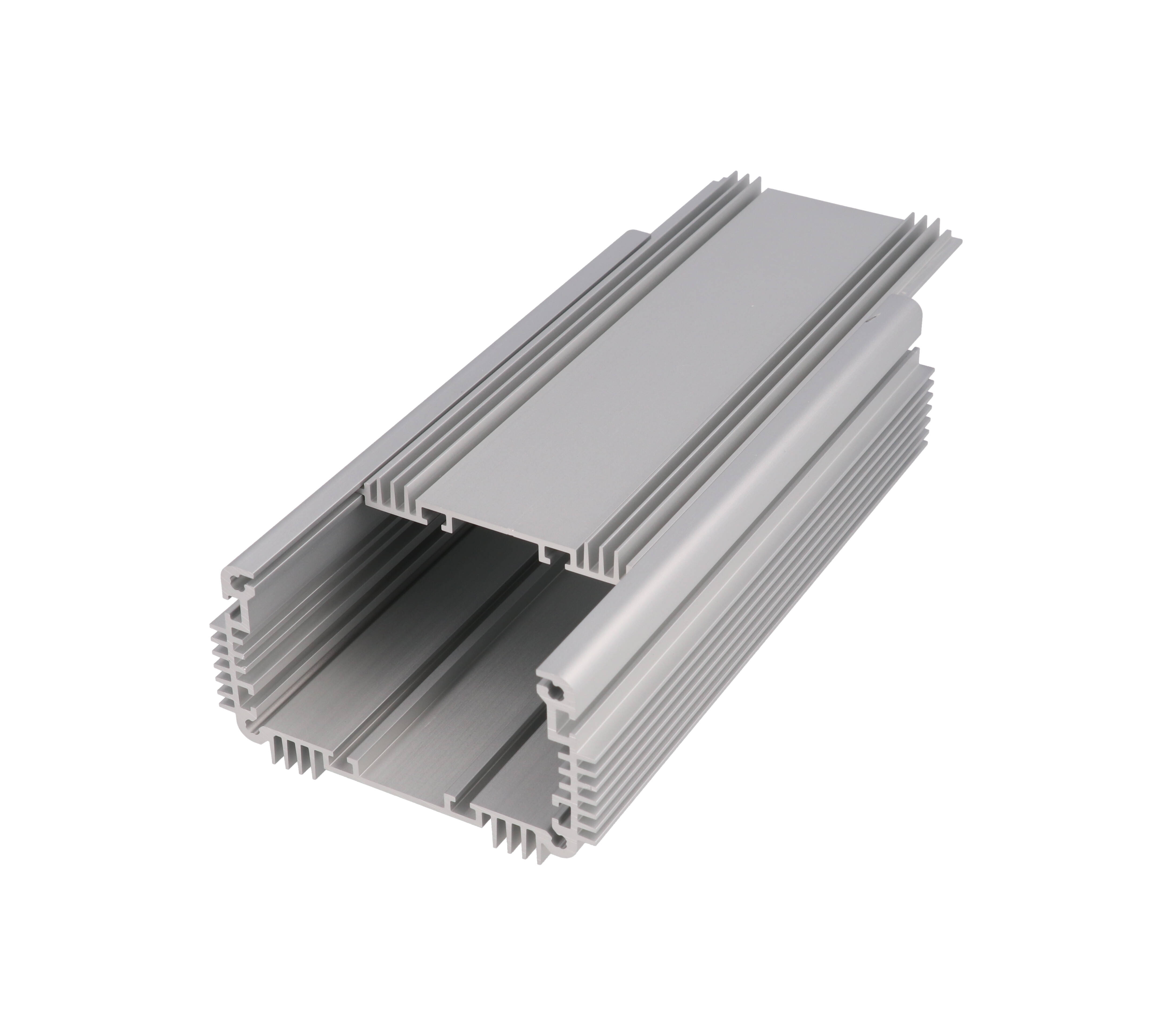

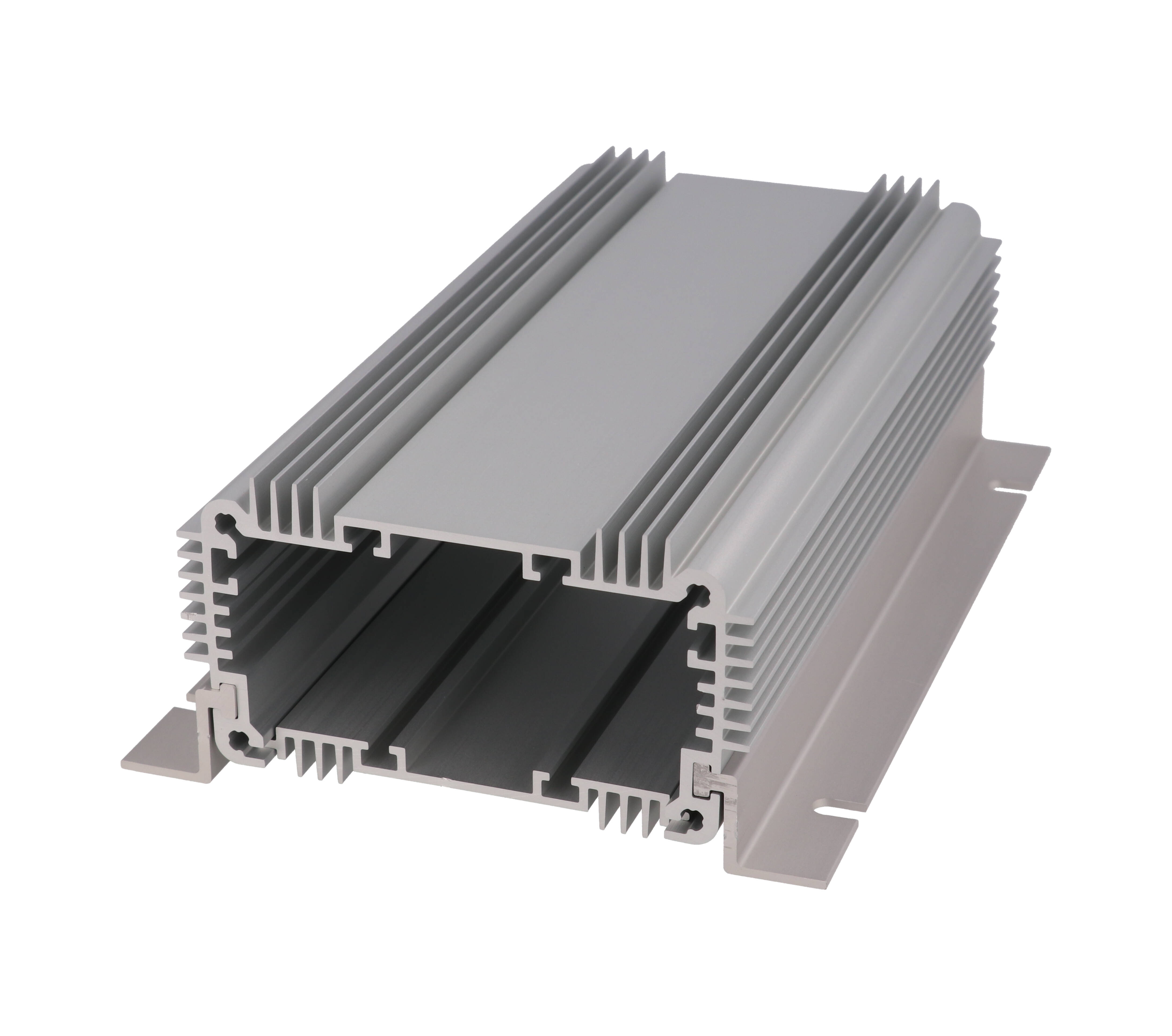

| Series | Heat Dissipating Extruded Aluminum Enclosures (1455HD Series) |
| Short Description | 1455K "HD" 160mm FINNED ENCL |
| Long Description | heat dissipating extruded aluminum enclosure |
| Size L x W x H |
6.3 in x 3.39 in x 2.01 in (160 mm x 86 mm x 51 mm) |
| Shipping Weight | 0.84 lbs (0.38 kg) |
| UNSPSC | 39121301 |
| UPC | 623980031774 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | Aluminum (Extruded) |
| Color | Clear (Anodize) |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | Heat Dissipation |
| Max. P.C. Board Length (mm) | 159 |
| Max. P.C. Board Width (mm) | 74 |

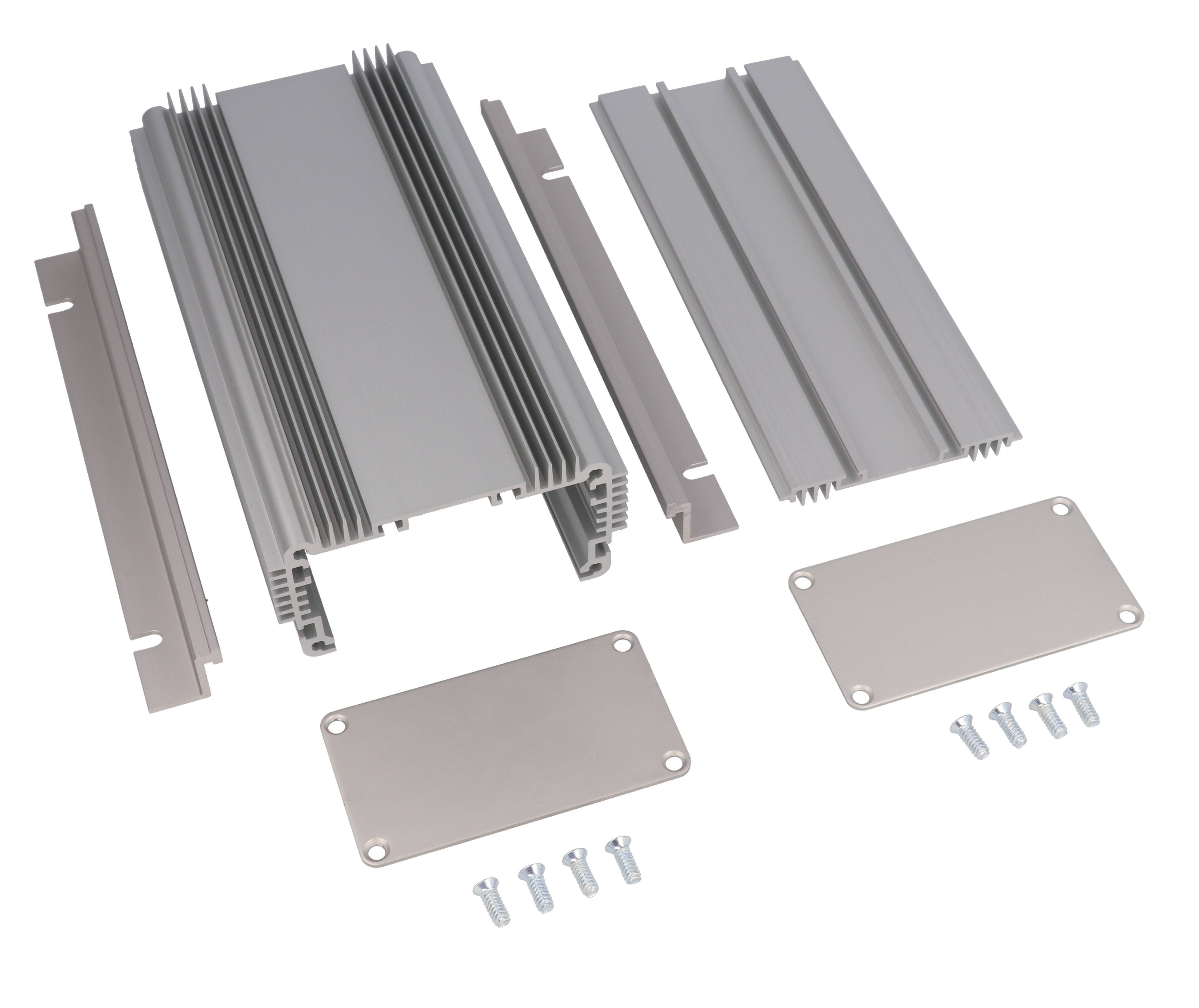

| Replacement Parts and Accessories | |
|---|---|
| 1455MS100 | screws for 1455 series enclosures - 100/pack (Assembly screws) |
