| Part Attributes | |
|---|---|

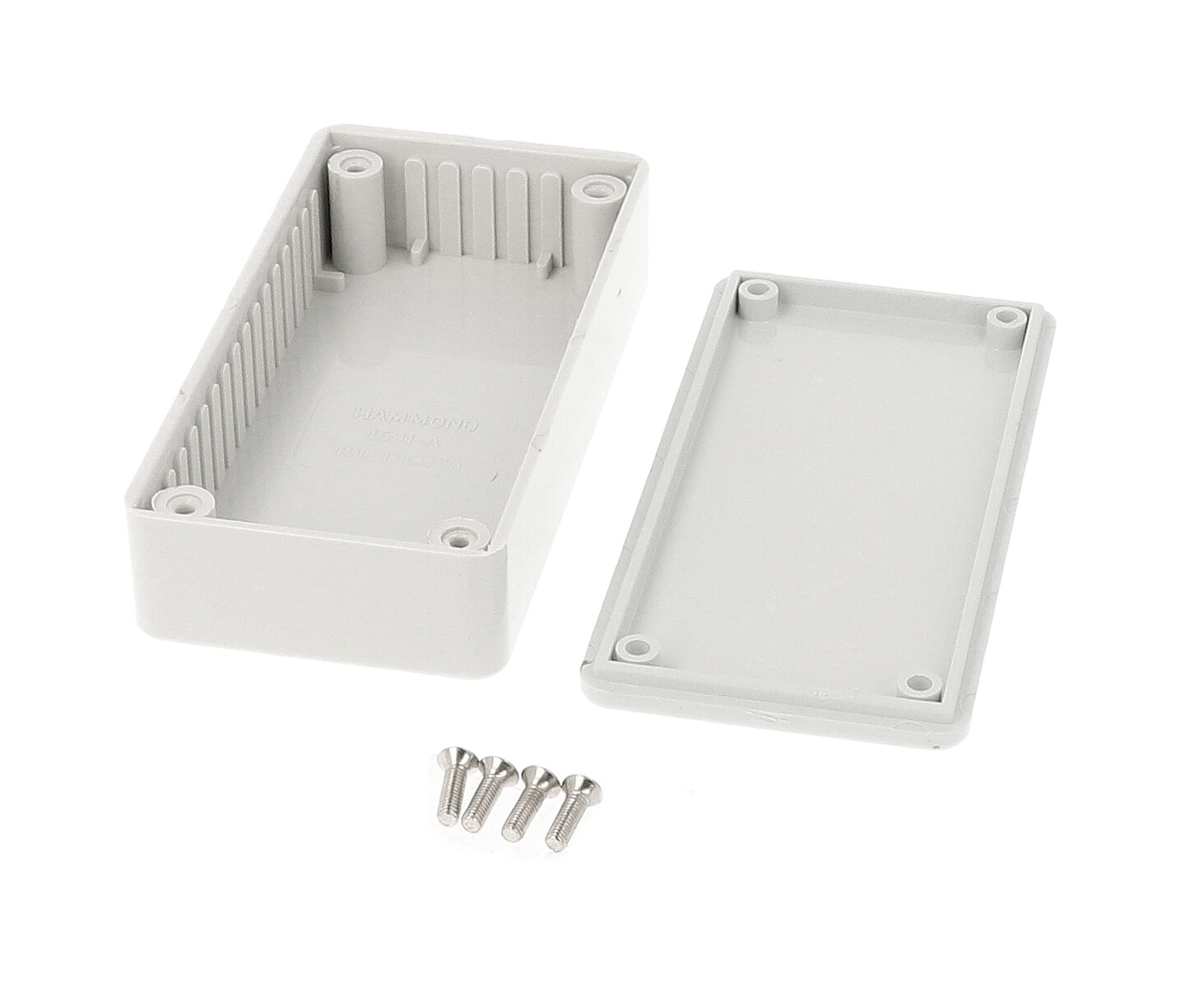

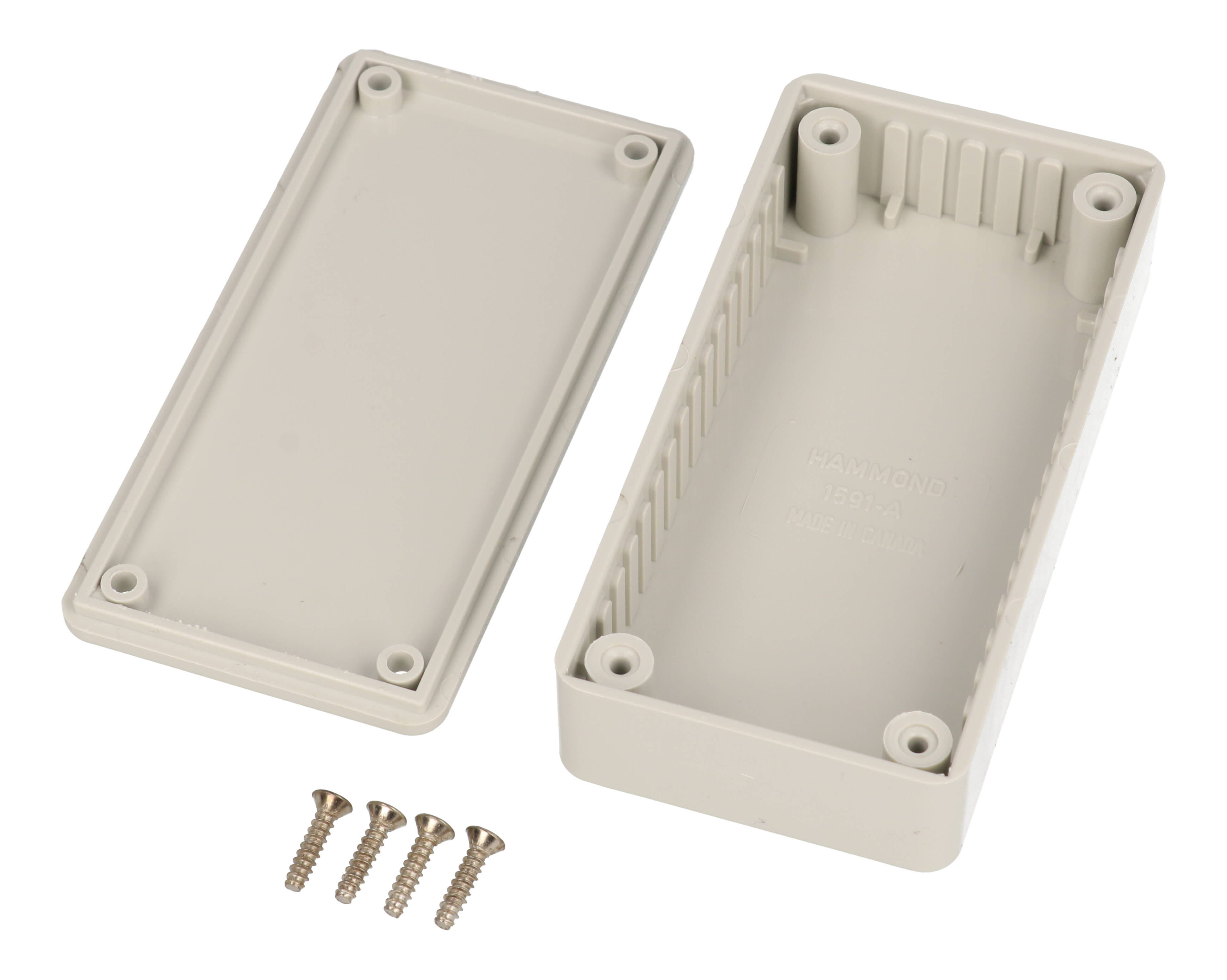

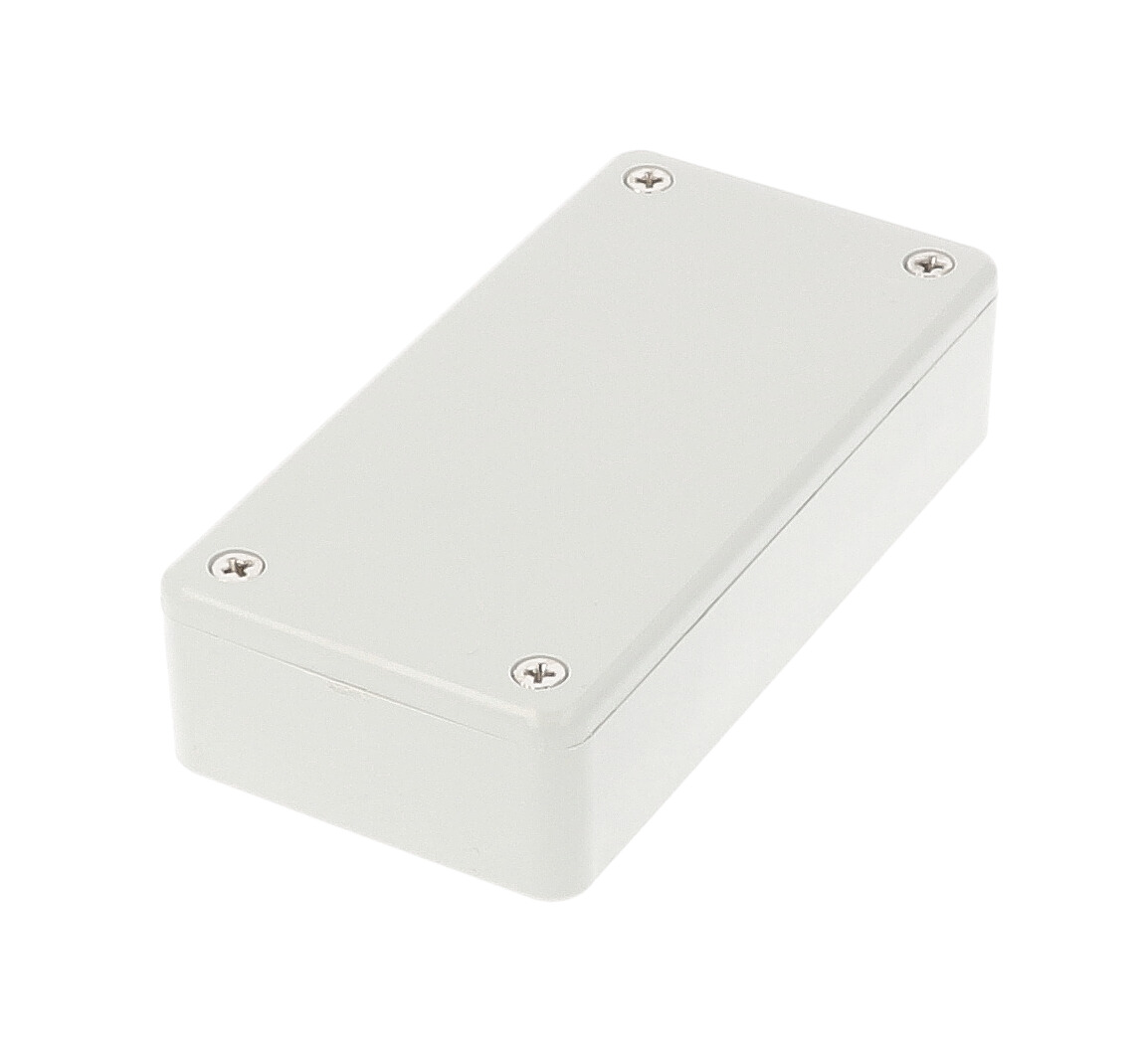

| Part Number | 1591ASGY |
| Series | ABS Plastic Multipurpose Enclosures w/ Card Guides (1591 Series) |
| Short Description | GPABS PLASTIC CASE |
| Long Description | enclosure - plastic |
| Size L x W x H |
3.94 in x 1.97 in x 0.98 in (100 mm x 50 mm x 25 mm) |
| Shipping Weight | 0.1 lbs (0.05 kg) |
| UNSPSC | 39121301 |
| UPC | 623980137179 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Light Gray |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | project box, general purpose |
| Replacement Parts and Accessories | |
|---|---|
| 1591AC | lid - clear polycarbonate, made to fit 1591A enclosures (Clear Lid Accessory) |
| 1591TS100 | #4 X 1/2" self tapping screw for plastic enclosures (Lid Screws) |
