Drawing Downloads
| Additional Downloads |
|---|
| Specification Sheet |
| 1591Z Card Guide Instructions |
| Plastic Chemical Resistance Statement 10-2023 |
| Part Attributes | |
|---|---|

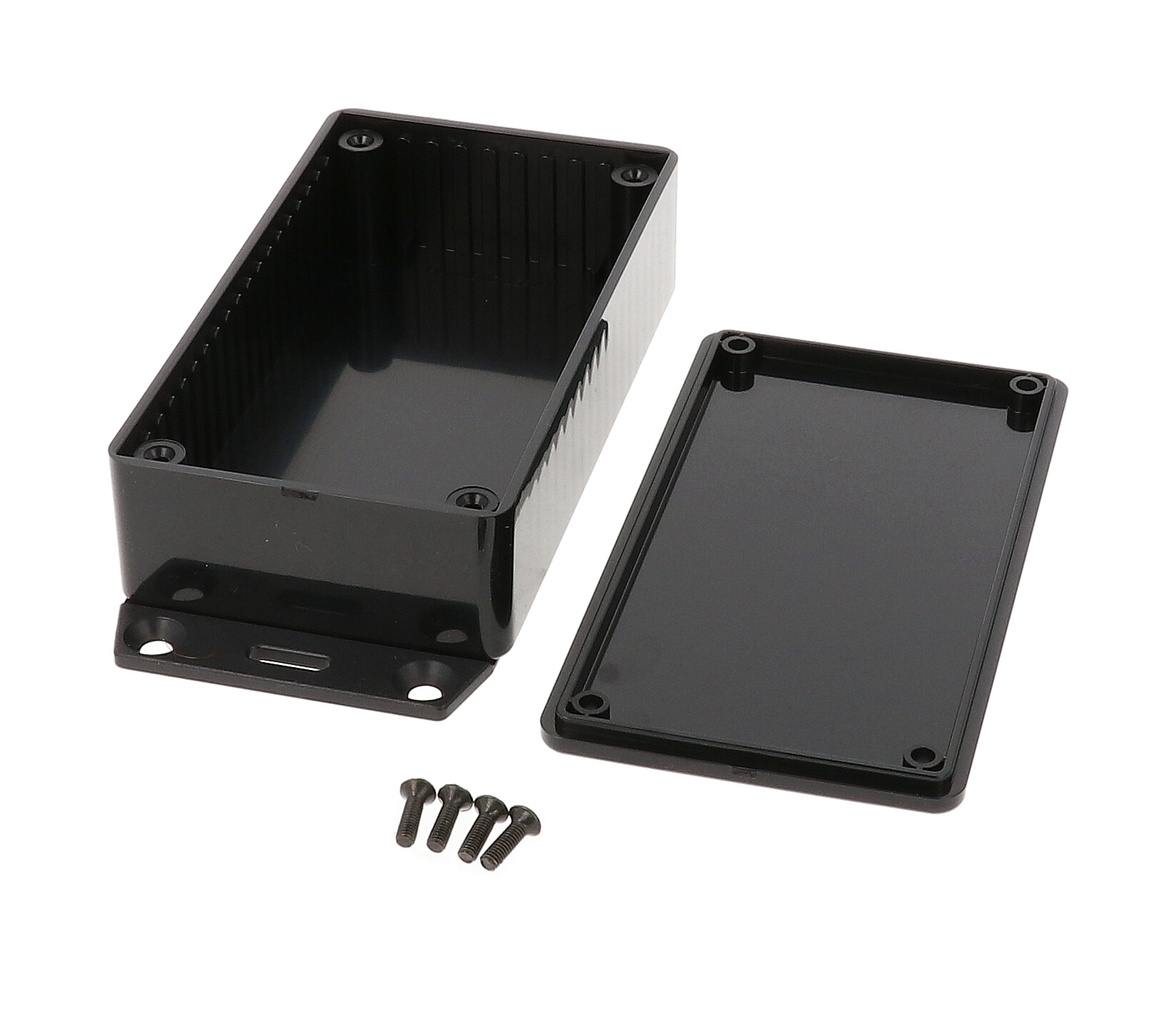

| Part Number | 1591BF2SBK |
| Series | ABS Plastic Multipurpose Enclosures w/ Card Guides (1591 Series) |
| Short Description | 1591B GPABS WITH FLANGE |
| Long Description | enclosure - plastic |
| Size L x W x H |
4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm) |
| Shipping Weight | 0.17 lbs (0.08 kg) |
| UNSPSC | 39121301 |
| UPC | 623980136905 |
| REACH Compliant | Yes (more info...) |
| RoHS Compliant | Yes (more info...) |
| Packaging Type | shrink wrap |
| Material | ABS Plastic |
| Color | Black |
| Flame Rating | UL94 HB |
| IP Rating | IP54 |
| Product Category | Enclosures |
| Type | general purpose, flanged |
| Replacement Parts and Accessories | |
|---|---|
| 1591BC | lid - clear polycarbonate, made to fit 1591B enclosures (Clear Lid Accessory) |
| 1591TS100BK | #4 X 1/2" self tapping screw for plastic enclosures, black (Lid Screws) |
